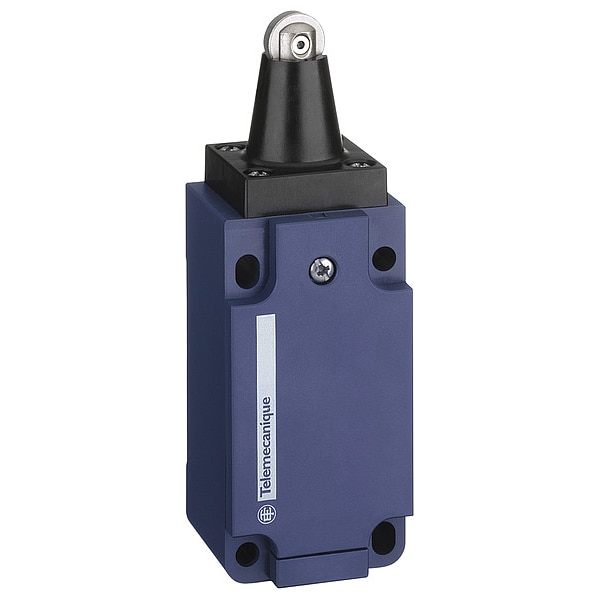

Interruptor de límite, Pistón, Rodillo, 1NC/1NO, 3A @ 240V CA, Ubicación del actuador: Superior.
| Item | Limit switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 3 A @ 240 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Roller Width | 0.16 in |
| Roller Material | Steel |
| Contact Form | 1NC, 1NO |
| Head Material | Plastic |
| Actuator Location | Top |
| Actuator Style | Roller Plunger |
| Certification | CCC, CSA, UL |
| Body Depth - Limit Switch | 37 mm |
| Width | 40 mm |
| Special Features | 2 directions, Lateral approach |
| IP Rating | 66, 67 |
| Movement | Angular |
| Body Style (Limit Switch) | fixed |
| Body Height - Limit Switch | 117 mm |
| Contact Form - Limit Switch | 1NO, 1NC |
| Body Width - Limit Switch | 1.57 in |
| Operating Temp. Range | -13 to 158 deg F |
| Body Material | Plastic |
| Wiring Entry | 1/2 in NPT |
| Operating Force | 4.49 lb |
| Arm Material | Not Applicable |
| Series | XCKS |
| AC Contact Rating | 3 A @ 240 V |
| Electrical Connection | Screw Terminals |
| Roller Dia. | 0.51 in |
| DC Contact Rating | 0.27 A @ 250 V |
| Standards | CENELEC EN 50041, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Actuation Type | by 30° cam |
| Min. Actuation Velocity Horizontal | 0.5 m/s |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Mechanical Durability | 15,000,000 cycle |
| Head Type | plunger head |
| Contact Action | slow-break, break before make |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Weight | 0.133 kg |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Type Of Operator | spring return roller plunger metal |
| Number Of Poles | 2 |
| Overall Depth | 1.46 in |
| Wireless Network Interface | Not Applicable |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Operating Temperature - Minimum | -13 deg F |
| Directional Movement | Linear |
| Mounting Style | Surface |
| Operating Temperature - Maximum | 158 deg F |
| Overall Height | 4.61 in |
| Roller Diameter | 0.51 in |
| Overall Width | 1.57 in |
| Body Width | 1.57 in |
| Operating Force - Maximum | 12 N |
| Body Depth | 1.46 in |
| Package Quantity | 1 |
