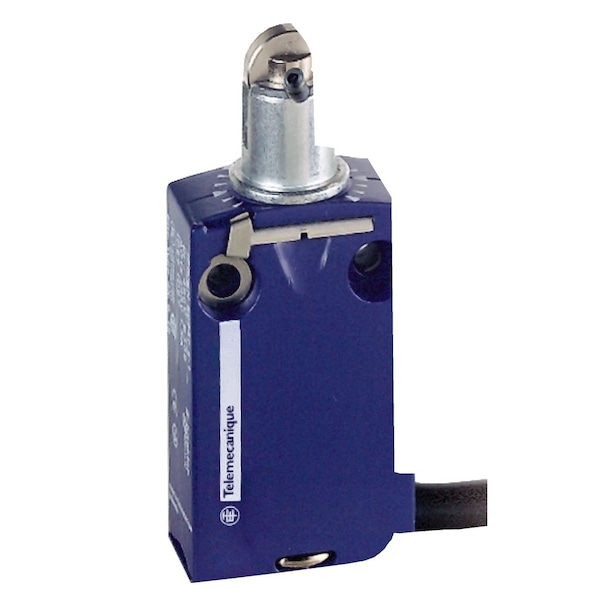

Interruptor de límite, émbolo, rodillo, 1NC/1NO, 5A @ 240V CA, Ubicación de actuador: Superior.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 5 A @ 240 V |
| Body Height - Limit Switch | 70.4 mm |
| Series | XCMD |
| Operating Force | 7 N |
| Movement | Linear |
| Width | 30 mm |
| Actuator Style | Roller Plunger |
| Standards | CSA C22.2 No 14 || EN/IEC 60204-1 || UL 508 || EN/IEC 60947-5-1 |
| Certification | UL || CSA || CCC |
| Electrical Connection | fixed cable |
| Operating Temp. Range | -25-70 °C |
| Body Style (Limit Switch) | fixed |
| Head Material | zamak |
| Special Features | lateral approach, 2 directions |
| Cable Length | 5 m |
| Body Material | plastic |
| IP Rating | IP65 conforming to IEC 60529 |
| Body Depth - Limit Switch | 16 mm |
| Head Type | plunger head |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Actuation Type | by 30° cam |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Mechanical Durability | 5,000,000 cycle |
| Short Circuit Protection | 6 A cartridge fuse gG |
| Weight | 0.08 kg |
| Min. Actuation Velocity Horizontal | 0.5 m/s |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contact Action | snap action |
| Number Of Poles | 2 |
| Type Of Operator | spring return roller plunger metal |
| Operating Force - Maximum | 7 N |
| Package Quantity | 1 |
