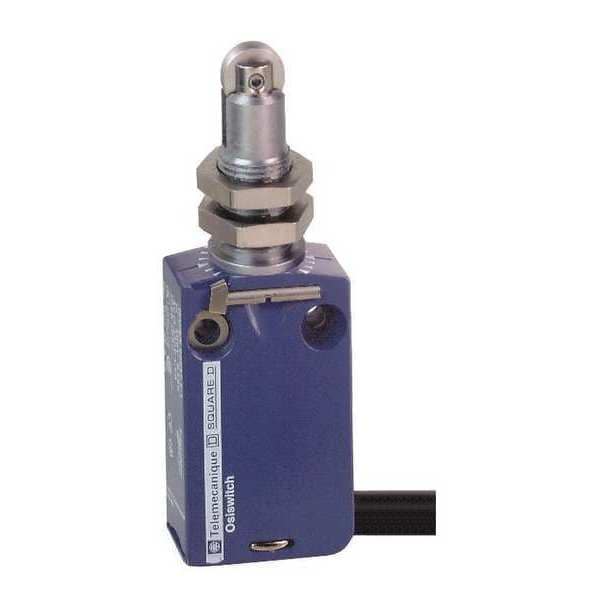

Interruptor de límite, émbolo, rodillo, 1NC/1NO, 6A @ 240V AC, ubicación del actuador: superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 6 A @ 240 V |
| DC Contact Rating - Limit Switch | 6 A @ 240 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface, Stem |
| Stem Thread - Limit Switch | M12 x 1.00 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| Roller Material | Steel |
| Voltage Rating | 240VAC/DC |
| Body Height - Limit Switch | 1.97 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| DC Contact Rating | 6 A @ 240 V |
| Operating Force | 1.6 in-lb |
| Roller Width | 0.14 in |
| Actuator Style | Plunger, Roller, Bushing Mount |
| Movement | Horizontal |
| Wiring Entry | Cable |
| Standards | CE, CSA, UL |
| Width | 1.18 in |
| Actuator Location (Limit Switch) | Top |
| Depth | 0.63 in |
| Body Style (Limit Switch) | Miniature |
| IP Rating | 68 |
| Boot Sealed Actuator (Limit Switch) | No |
| Actuator Length | 1.42 in |
| AC Contact Rating | 6 A @ 240 V |
| Mounting Hole Spacing - Limit Switch | 0.79 in |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Travel | 0.31 in |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Actuator Length - Limit Switch | 1.42 in |
| Operating Temp. Range | -13 to 158 deg F |
| Body Depth - Limit Switch | 0.63 in |
| Series | XCMD |
| Height | 1.97 in |
| Limit Switch Style | General Purpose Limit Switch |
| Roller Dia. | 0.42 in |
| Contact Form | 1NC, 1NO |
| Electrical Connection | 2m Cable, 5 Wire |
| Body Width - Limit Switch | 1.18 in |
| Amps | 6 |
| Body Material | Zinc |
| Contact Form - Limit Switch | 1NO, 1NC |
| Arm Material | Metal |
| Actuator Location | Top |
| Boot Sealed Actuator - Limit Switch | No |
| Certification | UL || CSA || CCC |
| Head Material | zamak |
| Cable Length | 2 m |
| Special Features | lateral approach, 2 directions |
| Short Circuit Protection | 6 A cartridge fuse gG |
| Actuation Type | by 30° cam |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Contact Action | snap action |
| Head Type | plunger head |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Mechanical Durability | 10,000,000 cycle |
| Min. Actuation Velocity Horizontal | 10 cm/s |
| Type Of Operator | spring return roller plunger metal |
| Number Of Poles | 2 |
| Overall Depth | 0.63 in |
| Roller Diameter | 0.42 in |
| Overall Height | 1.97 in |
| Number of Mounting Holes | 2 |
| Boot Sealed Actuator | No Boot Included |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Directional Movement | Linear |
| Body Height | 2.05 in |
| Wireless Network Interface | Not Applicable |
| Body Width | 1.18 in |
| Operating Temperature - Maximum | 158 deg F |
| Operating Torque - Maximum | 1.6 in-lb |
| Body Depth | 0.63 in |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 12, 2 |
| Overall Width | 1.18 in |
| Operating Temperature - Minimum | -13 deg F |
| Manufacturer Warranty Length | 18 mo |
| Operating Force - Maximum | 7 N |
| Mounting Hole Horizontal Center to Center Distance | 20 mm |
| Mounting Hole Diameter | 0.16 in |
| Mounting Style | Surface, Stem |
| Package Quantity | 1 |
