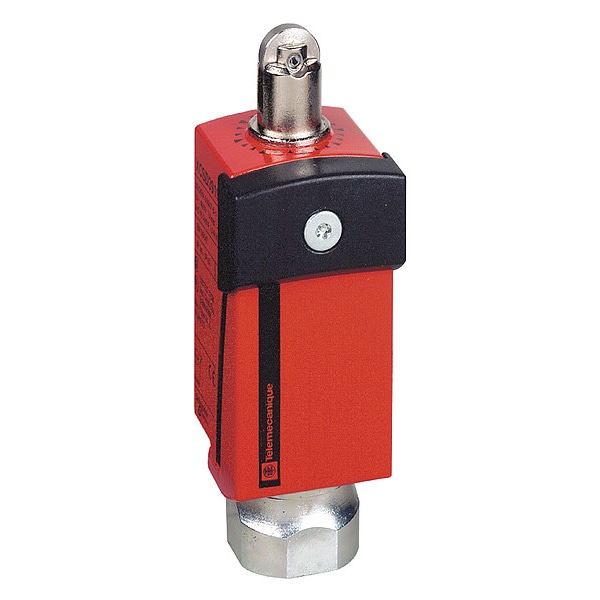

Interruptor de límite, émbolo, rodillo, 2NC/1NO, 5A @ 240V AC, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 2NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 5 A @ 240 V |
| Width | 34 mm |
| Body Height - Limit Switch | 100 mm |
| Operating Temp. Range | -25-70 °C |
| Body Material | zamak |
| Head Material | zamak |
| Certification | CSA || UL |
| Standards | EN 1088/ISO 14119 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60204-1 |
| Electrical Connection | Terminal |
| Series | XCSD |
| Body Depth - Limit Switch | 35 mm |
| Operating Force | 12 N |
| IP Rating | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 |
| Short Circuit Protection | 6 A cartridge fuse gG (gl) |
| Head Type | plunger head |
| Contact Action | snap action |
| Mechanical Durability | 10,000,000 cycle |
| Min. Actuation Velocity Horizontal | 0.5 m/s |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Weight | 0.255 kg |
| Actuation Type | by 30° cam |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Actuator Material | Metal |
| Number Of Poles | 3 |
| Type Of Operator | steel roller plunger |
| Package Quantity | 1 |
