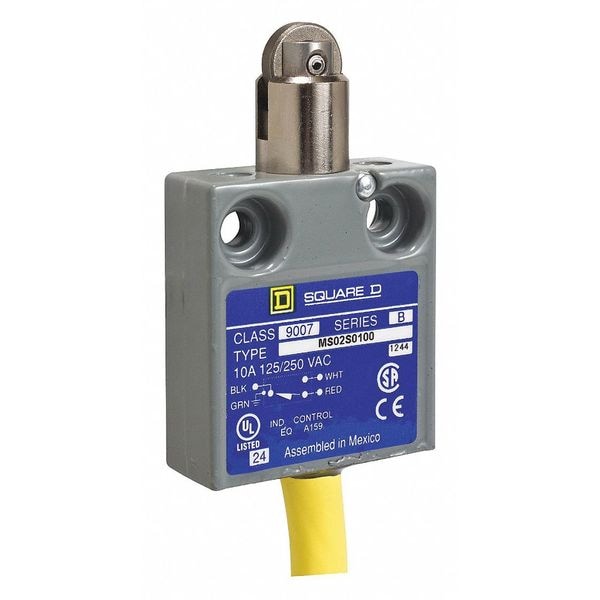

Interruptor de límite, embolo, rodillo, SPDT, 10A @ 240V CA, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 240 V |
| Amps | 10 |
| Series | 9007MS |
| Operating Temp. Range | -40-220 °F |
| Movement | Linear |
| Certification | CSA || CE || UL |
| Body Material | cast zinc, metal |
| Contact Material | silver contacts |
| Body Style (Limit Switch) | fixed |
| Body Height - Limit Switch | 1-3/4 in |
| Standards | E78403 || LR 25490 Class 32 11 03; UL || CSA || CE |
| NEMA Rating | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 |
| Width | 1.56 in |
| Electrical Connection | pre-wired cable bottom |
| Special Features | lateral approach, 2 directions |
| Actuator Style | Roller Plunger |
| Body Depth - Limit Switch | 0.62 in |
| IP Rating | IP67 conforming to IEC 60529 |
| Contact Form | Form C |
| Mechanical Durability | 10,000,000 cycle |
| Electrical Durability | 100000 cycles |
| Head Type | plunger head |
| Vibration Resistance | 10 gn 75-1200 Hz)IEC 60068-2-6 |
| Actuation Type | by 30° cam |
| Contact Action | snap action |
| Shock Resistance | 35 gn 9 ms IEC 60068-2-27 |
| Weight | 1.2 lb |
| Operating Force - Maximum | 80 ozf |
| Number Of Poles | 1 |
| Type Of Operator | spring return parallel roller plunger steel |
| Package Quantity | 1 |
