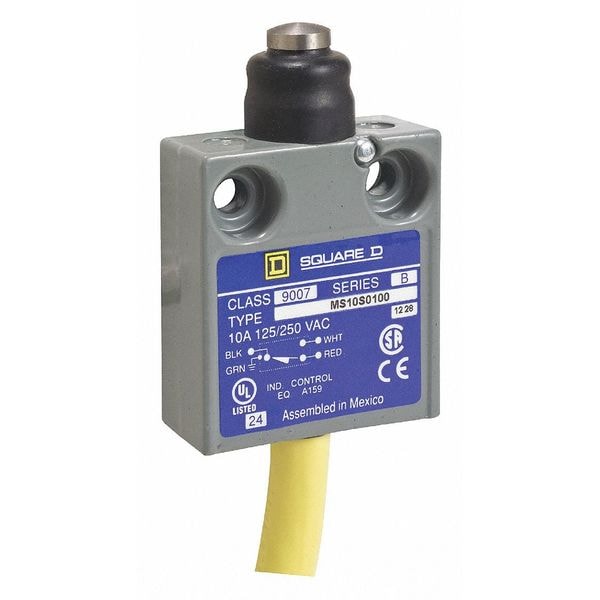

Interruptor de límite, émbolo, SPDT, 10A @ 300V AC, ubicación del actuador: Parte superior.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 300 V |
| DC Contact Rating - Limit Switch | 5 A @ 300 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Actuator Location | Top |
| AC Contact Rating | 10 A @ 300 V |
| DC Contact Rating | 5 A @ 300 V |
| Depth | 0.62 in |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Body Style (Limit Switch) | Miniature |
| Body Width - Limit Switch | 1.58 in |
| Wiring Entry | Cable |
| IP Rating | 67 |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Actuator Length | 0.67 in |
| Actuator Length - Limit Switch | 0.67 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Travel | 0.19 in |
| Voltage Rating | 300VAC/DC |
| Stem Thread - Limit Switch | No Stem |
| Body Depth - Limit Switch | 0.62 in |
| Boot Sealed Actuator - Limit Switch | Yes |
| Height | 2.42 in |
| Operating Temp. Range | -4 Degrees to 221 Degrees F (-20 Degrees to 105 Degrees C) |
| Operating Force | 5.0 in-lb |
| Body Height - Limit Switch | 1-3/4 in |
| Number of Poles | 1 |
| Electrical Connection | 9 ft Cable, 4 Wire |
| Width | 1.56 in |
| Standards | CE, CSA, UL |
| Series | 9007MS |
| Movement | Vertical |
| Actuator Style (Limit Switch) | Plunger |
| Body Material | Zinc |
| Limit Switch Style | General Purpose Limit Switch |
| Actuator Location (Limit Switch) | Top |
| Basic Actuator Style (Limit Switch) | Plunger |
| Contact Form - Limit Switch | SPDT |
| Amps | 10 AC/5 DC |
| Actuator Style | Plunger, Boot Sealed |
| Mounting Hole Spacing - Limit Switch | 0.98 in |
| Boot Sealed Actuator (Limit Switch) | Yes |
| Contact Form | SPDT |
| Contact Material | silver contacts |
| Certification | CSA || UL || CE |
| Special Features | vertical approach, 1 direction |
| Head Type | plunger head |
| Actuation Type | on end |
| Electrical Durability | 100000 cycles |
| Mechanical Durability | 10,000,000 cycle |
| Vibration Resistance | 10 gn 75-1200 Hz)IEC 60068-2-6 |
| Shock Resistance | 35 gn 9 ms IEC 60068-2-27 |
| Weight | 1.2 lb |
| Contact Action | snap action |
| Operating Force - Maximum | 80 ozf |
| Operating Temperature - Minimum | -40 deg F |
| Body Width | 1.58 in |
| Overall Height | 1-3/4 in |
| Manufacturer Warranty Length | 18 mo |
| Body Depth | 0.62 in |
| Overall Depth | 0.62 in |
| Boot Sealed Actuator | Boot Included |
| Mounting Style | Surface |
| Wireless Network Interface | Not Applicable |
| Mounting Hole Diameter | 0.2 in |
| Number of Mounting Holes | 2 |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Overall Width | 1.56 in |
| Body Height | 1-3/4 in |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 12, 2 |
| Operating Temperature - Maximum | 220 deg F |
| Directional Movement | Linear |
| Type Of Operator | spring return plunger stainless steel |
| Package Quantity | 1 |
