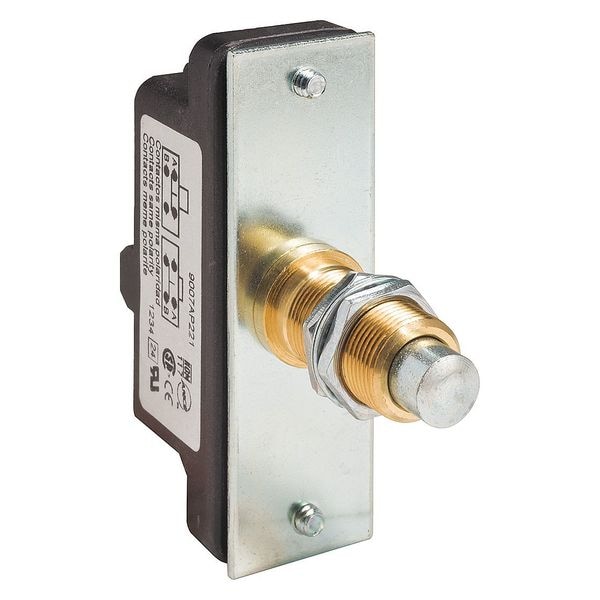

Interruptor de límite, émbolo, retorno por resorte, 1 circuito normalmente cerrado/1 circuito normalmente abierto, 15 amperios a 600 voltios CA.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Spring Return |
| Contact Form- Switches | 1NC/1NO |
| AC Contact Rating - Limit Switch | 15 A @ 600 V |
| Mounting - Limit Switch | panel mounting |
| Voltage Rating | 600VAC |
| Travel | 0.27" |
| Actuator Location | Top |
| Housing Material | Plastic |
| IP Rating | No IP Rating |
| Differential Travel | 0.035 in to 0.046 in |
| Height - Snap Action Switch | 2.2 in |
| Actuator Type - Snap Action Switch | Panel Mount, Plunger |
| Watertight - Snap Action Switch | No |
| Height | 2-1/2 in |
| DC Contact Rating - Snap Action Switch | 0.1A @ 600V |
| AC Contact Rating - Snap Action Switch | 6A @ 480V |
| Over Travel | 0.015 in |
| Width - Snap Action Switch | 2.5 in |
| DC Contact Rating | Not Rated |
| Wiring Entry | Screw Terminals |
| Series | 9007AO/CO |
| Contact Form | SPDT, 1NC, 1NO |
| Operating Temp. Range | 0 to 185 deg F |
| Movement | Vertical |
| Number of Poles | 1 |
| Actuator Style | Plunger |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Amps | 15 |
| Contact Form - Limit Switch | 1NO, 1NC |
| Body Material | plastic |
| Standards | CE, CSA, UL |
| Depth - Snap Action Switch | 0.83 in |
| Mounting Dimension - Snap Action Switch | 2.13 in Centers |
| Depth | 1.32 in |
| Electrical Connection | Screw Terminals |
| NEMA Rating | Open Style |
| Max. Pretravel | 0.089 in |
| Width | 0.83 in |
| Operating Force | 10 to 14 oz |
| AC Contact Rating | 15 A @ 600 V |
| Electrical Connection - Snap Action Switch | Screw |
| Body Height - Limit Switch | 2-1/2 in |
| Body Style (Limit Switch) | fixed |
| Body Depth - Limit Switch | 2.2 in |
| Special Features | vertical approach, 1 direction |
| Contact Material | silver contacts |
| Weight | 0.1 lb |
| Contact Action | snap action |
| Actuation Type | on end |
| Head Type | plunger head |
| Pretravel | 0.09 in |
| Lever Actuator Length | Not Applicable |
| Overall Height | 2-1/2 in |
| Operating Force - Minimum | 10.08 ozf |
| Manufacturer Warranty Length | 18 mo |
| Body Height | 2-1/2 in |
| Body Width | 0.83 in |
| Center Mounting Hole Distance | 2.13 in |
| Operating Temperature - Minimum | -20 deg F |
| Body Depth | 2.2 in |
| Overtravel | 0.015 in |
| Overall Depth | 2.2 in |
| Overall Width | 0.83 in |
| Differential Travel - Maximum | 0.046 in |
| Differential Travel - Minimum | 0.035 in |
| Operating Temperature - Maximum | 185 deg F |
| Operating Force - Maximum | 14.08 ozf |
| Type Of Operator | spring return plunger metal bushing mounted |
| Package Quantity | 1 |
