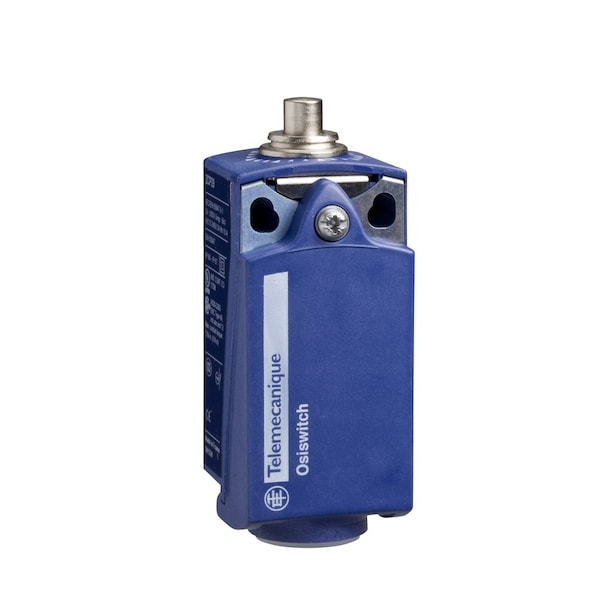

Interruptor de límite, embolo, retorno por resorte, 1NC/1NO, ubicación del actuador: superior.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Spring Return |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| Width | 31 mm |
| Head Material | zamak |
| Standards | EN 60947-5-1 || IEC 60204-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN 60204-1 |
| Certification | CCC || CSA || UL |
| IP Rating | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 |
| Body Style (Limit Switch) | fixed |
| Body Material | plastic |
| Operating Temp. Range | -25-70 °C |
| Special Features | vertical approach, 1 direction |
| Body Height - Limit Switch | 65 mm |
| Movement | Linear |
| Body Depth - Limit Switch | 30 mm |
| Electrical Connection | screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Operating Force | 15 N |
| Series | XCKP |
| Mechanical Durability | 15,000,000 cycle |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Min. Actuation Velocity Horizontal | 0.5 m/s |
| Actuation Type | on end |
| Weight | 0.09 kg |
| Contact Action | snap action |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Head Type | plunger head |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Type Of Operator | spring return plunger metal |
| Number Of Poles | 2 |
| Package Quantity | 1 |
