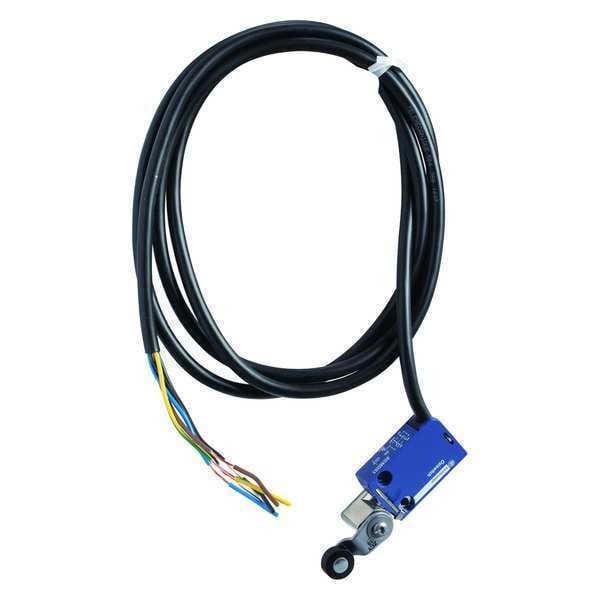

Interruptor de límite, palanca de rodillo, rotativo, 1NC/1NO, 6A @ 240V AC, Ubicación del actuador: Lateral
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 6 A @ 240 V |
| DC Contact Rating - Limit Switch | 6 A @ 240 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Actuator Location | Side |
| Body Width - Limit Switch | 1.18 in |
| Width | 1.18 in |
| Arm Material | Metal |
| Stem Thread - Limit Switch | No Stem |
| Electrical Connection | 2m Cable, 5 Wire |
| Body Depth - Limit Switch | 0.63 in |
| Height | 1.97 in |
| Roller Material | Thermoplastic |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| IP Rating | 68 |
| Body Material | Zinc |
| Standards | CE, CSA, UL |
| Contact Form | 1NC, 1NO |
| Actuator Style | Rotary Adjustable Rod |
| Boot Sealed Actuator (Limit Switch) | No |
| Depth | 0.63 in |
| AC Contact Rating | 6 A @ 240 V |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| Travel | Total Travel 90 Degrees |
| Body Style (Limit Switch) | Miniature |
| Operating Temp. Range | -13 to 158 deg F |
| Actuator Length | 1.36 in |
| Actuator Length - Limit Switch | 1.36 in |
| Operating Force | 0.9 in-lb |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Contact Form - Limit Switch | 1NO, 1NC |
| Basic Actuator Style (Limit Switch) | Rotary |
| Voltage Rating | 240VAC/DC |
| Boot Sealed Actuator - Limit Switch | No |
| Limit Switch Style | General Purpose Limit Switch |
| DC Contact Rating | 6 A @ 240 V |
| Roller Dia. | 0.63 in |
| Actuator Location (Limit Switch) | Side |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Amps | 6 |
| Movement | CCW, CW |
| Roller Width | 0.22 in |
| Series | XCMD |
| Mounting Hole Spacing - Limit Switch | 0.79 in |
| Wiring Entry | Cable |
| Body Height - Limit Switch | 1.97 in |
| Body Height | 1.97 in |
| Directional Movement | CW, CCW |
| Total Travel | 90 Degrees |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
| Wireless Network Interface | Not Applicable |
| Overall Depth | 4.37 in |
| Operating Temperature - Minimum | -13 deg F |
| Operating Torque - Maximum | 0.9 in-lb |
| Operating Temperature - Maximum | 158 deg F |
| Body Depth | 0.63 in |
| Manufacturer Warranty Length | 18 mo |
| Roller Diameter | 0.63 in |
| Mounting Hole Diameter | 0.16 in |
| Boot Sealed Actuator | No Boot Included |
| Mounting Style | Surface |
| Number of Mounting Holes | 2 |
| Overall Width | 1.85 in |
| Mounting Hole Horizontal Center to Center Distance | 20 mm |
| Body Width | 1.18 in |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 12, 2 |
| Overall Height | 5.16 in |
| Package Quantity | 1 |
