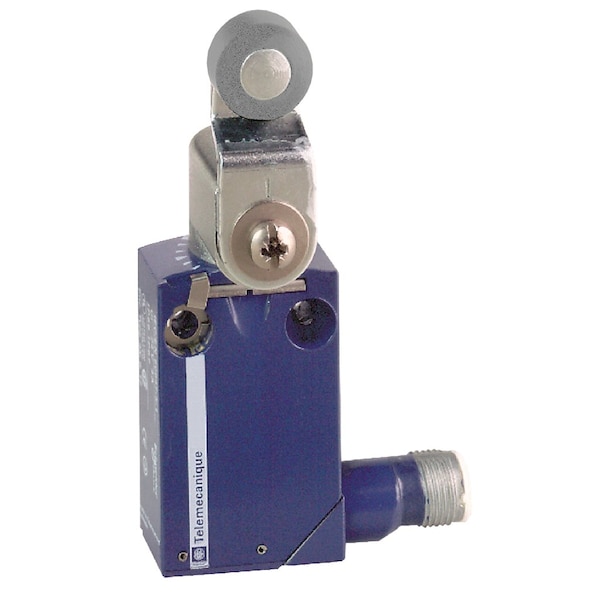

Interruptor de límite, palanca de rodillo, rotativo, 1NC/1NO, Ubicación del actuador: Lateral
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| Standards | UL 508 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 |
| Head Material | zamak |
| Body Depth - Limit Switch | 16 mm |
| Series | XCMD |
| Electrical Connection | male connector M12, 5 pins |
| Body Style (Limit Switch) | plug-in body |
| Width | 30 mm |
| Body Height - Limit Switch | 50 mm |
| Operating Force | 0.1 N |
| Movement | rotary |
| Certification | UL || CCC || CSA |
| Special Features | lateral approach, 2 directions |
| IP Rating | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529 |
| Body Material | zamak |
| Operating Temp. Range | -25-70 °C |
| Weight | 0.13 kg |
| Electrical Durability | 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Actuation Type | by 30° cam |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Contact Action | snap action |
| Min. Actuation Velocity Horizontal | 1.5 m/s |
| Short Circuit Protection | 4 A cartridge fuse gG |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Head Type | rotary head |
| Mechanical Durability | 10,000,000 cycle |
| Number Of Poles | 2 |
| Type Of Operator | spring return roller lever metal |
| Package Quantity | 1 |
