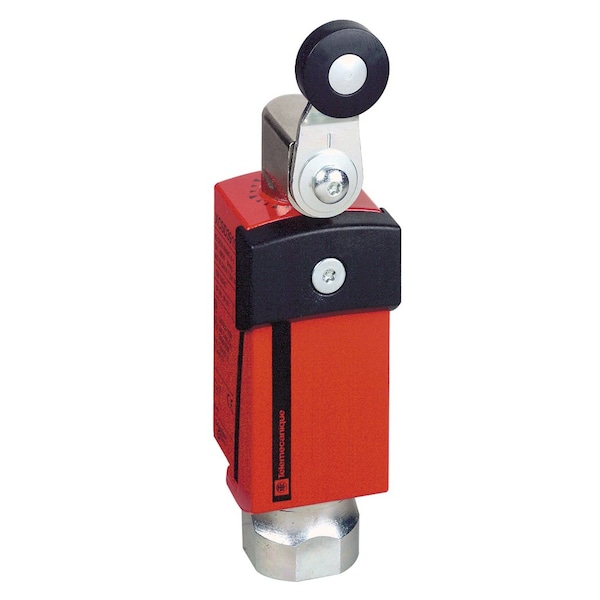

Interruptor de límite, palanca de rodillo, rotativo, 2NC/1NA, 5A @ 240V CA, Ubicación del actuador: Lateral.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 2NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 5 A @ 240 V |
| Electrical Connection | Terminal |
| Certification | CSA || UL |
| Standards | EN/IEC 60204-1 || EN/IEC 60947-5-1 || UL 508 || EN 1088/ISO 14119 || CSA C22.2 No 14 |
| Body Depth - Limit Switch | 35 mm |
| Body Material | zamak |
| Series | XCSD |
| Width | 34 mm |
| IP Rating | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 |
| Operating Temp. Range | -25-70 °C |
| Body Height - Limit Switch | 122 mm |
| Head Material | zamak |
| Short Circuit Protection | 6 A cartridge fuse gG (gl) |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Mechanical Durability | 10,000,000 cycle |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Contact Action | snap action |
| Weight | 0.255 kg |
| Min. Actuation Velocity Horizontal | 1.5 m/s |
| Head Type | rotary head |
| Actuation Type | by 30° cam |
| Number Of Poles | 3 |
| Type Of Operator | thermoplastic roller lever |
| Package Quantity | 1 |
