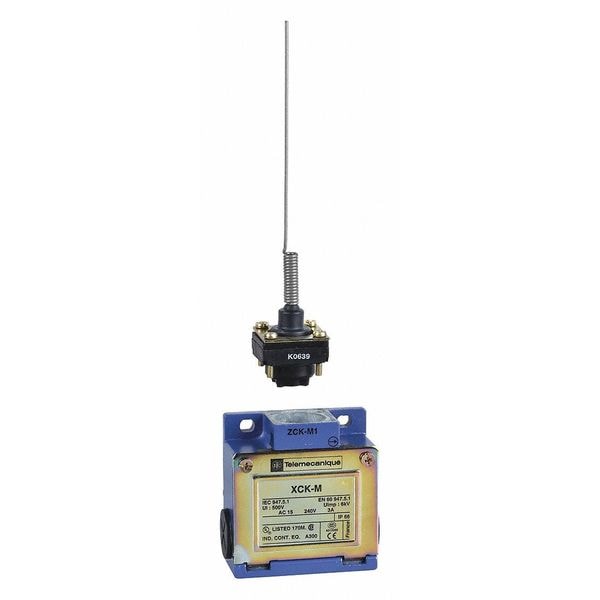

Interruptor de límite, Bigote, Retorno de resorte, 1NC/1NO, 10A @ 240V AC, Ubicación del actuador: Parte superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Whisker |
| Actuator Style - Limit Switch | Whisker, Spring Return |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 240 V |
| Amps | 10 |
| Width | 64 mm |
| Body Height - Limit Switch | 64 mm |
| Certification | UL || CCC || CSA |
| Body Depth - Limit Switch | 30 mm |
| Actuator Style | Cat Whisker |
| Movement | multi-directional |
| Operating Temp. Range | -25-70 °C |
| Body Material | zamak |
| Electrical Connection | screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| IP Rating | IP66 conforming to EN/IEC 60529 |
| Body Style (Limit Switch) | fixed |
| Special Features | multi-directional approach |
| Standards | IEC 60947-5-1 || CSA C22.2 No 14 || EN 60204-1 || EN 60947-5-1 || UL 508 || IEC 60204-1 |
| Series | XCKM |
| Weight | 0.25 kg |
| Shock Resistance | 50 gn 11 ms EN/IEC 60068-2-27 |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Vibration Resistance | 25 gn 10-500 Hz)EN/IEC 60068-2-6 |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Head Type | multi-directional head |
| Contact Action | snap action |
| Actuation Type | by any moving part |
| Min. Actuation Velocity Horizontal | 1 m/s |
| Mechanical Durability | 10,000,000 cycle |
| Arm Length - Minimum | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Operating Torque - Maximum | 1.15 in-lb |
| Type Of Operator | spring return cat''s whisker |
| Number Of Poles | 2 |
| Package Quantity | 1 |
