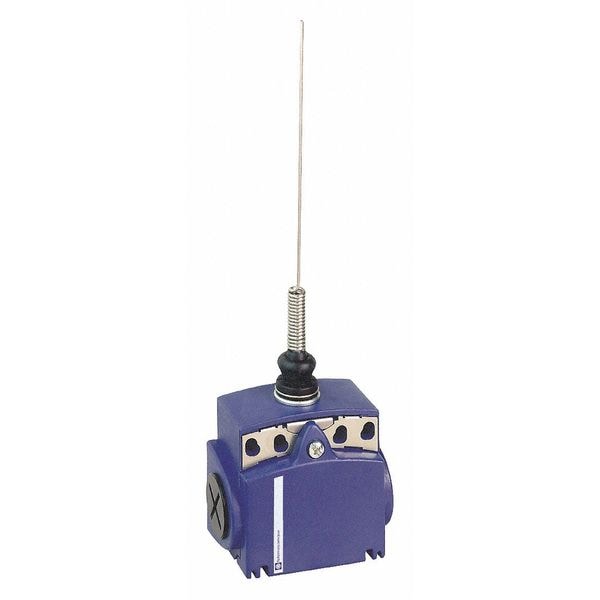

Interruptor de límite, palanca oscilante, 1NC/1NO, 10A @ 240V AC, Ubicación del actuador: Superior.
| Item | Limit switch |
|---|---|
| Basic Actuator Style - Limit Switch | Wobble Stick |
| Actuator Style - Limit Switch | Wobble Stick |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 240 V |
| DC Contact Rating - Limit Switch | 10 A @ 240 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Operating Temp. Range | -13 to 158 deg F |
| Contact Form | 1NC, 1NO |
| Arm Material | Steel |
| Body Depth - Limit Switch | 1.18 in |
| Width | 2.28 in |
| Actuator Length - Limit Switch | 5.19 in |
| Electrical Connection | Screw Terminals |
| Height | 2 in |
| Body Style (Limit Switch) | Miniature |
| Actuator Length | 5.19 in |
| Voltage Rating | 240VAC/DC |
| Movement | Any Direction |
| DC Contact Rating | 10 A @ 240 V |
| Wiring Entry | 1/2 in NPT |
| Arm Width | 0.05 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Stem Thread - Limit Switch | No Stem |
| AC Contact Rating | 10 A @ 240 V |
| NEMA Rating | 1, 12, 13, 2, 4, 6 |
| Series | XCKT |
| Travel | 90 Degrees |
| Actuator Style (Limit Switch) | Wobble Stick |
| Body Material | plastic |
| Limit Switch Style | General Purpose Limit Switch |
| Amps | 10 |
| Boot Sealed Actuator (Limit Switch) | No |
| Standards | CE, CSA, UL |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Location | Top |
| Actuator Style | Wobble Stick |
| Contact Form - Limit Switch | 1NO, 1NC |
| Mounting Hole Spacing - Limit Switch | 1.57 in |
| Mounting Hole - Limit Switch | (2) 0.17 in dia |
| Actuator Location (Limit Switch) | Top |
| Basic Actuator Style (Limit Switch) | Wobble Stick |
| Operating Force | 0.9 in-lb |
| Body Width - Limit Switch | 2.28 in |
| Depth | 1.18 in |
| Body Height - Limit Switch | 2 in |
| IP Rating | 67 |
| Certification | CSA || CCC || UL |
| Head Material | zamak |
| Special Features | multi-directional approach |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Actuation Type | by any moving part |
| Head Type | multi-directional head |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Mechanical Durability | 5,000,000 cycle |
| Min. Actuation Velocity Horizontal | 1 m/s |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Contact Action | snap action |
| Mounting Hole Diameter | 0.17 in |
| Body Depth | 1.18 in |
| Arm Length - Minimum | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Mounting Style | Surface |
| Overall Width | 3.12 in |
| Directional Movement | Omnidirectional |
| Operating Temperature - Minimum | -13 deg F |
| Boot Sealed Actuator | No Boot Included |
| Arm Length - Maximum | Not Applicable |
| Body Height | 2 in |
| Mounting Hole Horizontal Center to Center Distance | 40 mm |
| Operating Torque - Minimum | Not Applicable |
| Body Width | 2.28 in |
| Operating Torque - Maximum | 1.15 in-lb |
| Operating Temperature - Maximum | 158 deg F |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Wireless Network Interface | Not Applicable |
| Number of Mounting Holes | 4 |
| NEMA Enclosure Rating | 4, 13, 1, 6, 12, 2 |
| Number Of Poles | 2 |
| Type Of Operator | spring return cat''s whisker |
| Package Quantity | 1 |
