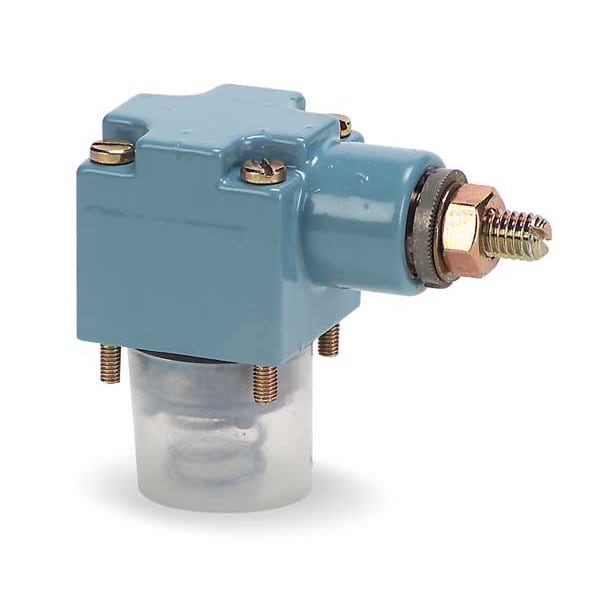

Cabeza de Interruptor de Límite, Rotatoria, Lateral, 1.77 pulg.-lb
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rotary Lever |
| Actuator Location | Side |
| Actuator Length | Not Applicable |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKL, XCKM |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Movement | Side |
| Voltage Rating | Not Applicable |
| Operating Temp. | -25 to 70 deg F |
| Amps | 10 |
| Operating Force | 1.77 in-lb |
| Description/Special Features | Momentary |
| IP Rating | Not Rated |
| Travel | 70 Degrees |
| Series Name | format |
| Device Short Name | ZCKG |
| Product Or Component Type | limit switch head |
| Movement Of Operating Head | rotary |
| Head Type | rotary head |
| Roller Adjustability | Not Applicable |
| Operating Torque | 1.77 in-lb |
| Operating Temperature - Minimum | -25 deg F |
| Action | Momentary |
| Operating Temperature - Maximum | 70 deg F |
| Arm Adjustability | Not Applicable |
| Roller Material | Not Applicable |
| Includes Actuator | No Actuator Included |
| Roller Position | Not Applicable |
| Plunger Adjustability | Not Applicable |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Roller Diameter | Not Applicable |
| Roller Width | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Arm Material | Not Applicable |
| Total Travel | 70 Degrees |
| Manufacturer Warranty Length | 18 mo |
| Compatible with Series | XCKL, XCKM |
| Directional Movement | CCW, CW |
| Arm Length - Minimum | Not Applicable |
| Package Quantity | 1 |
