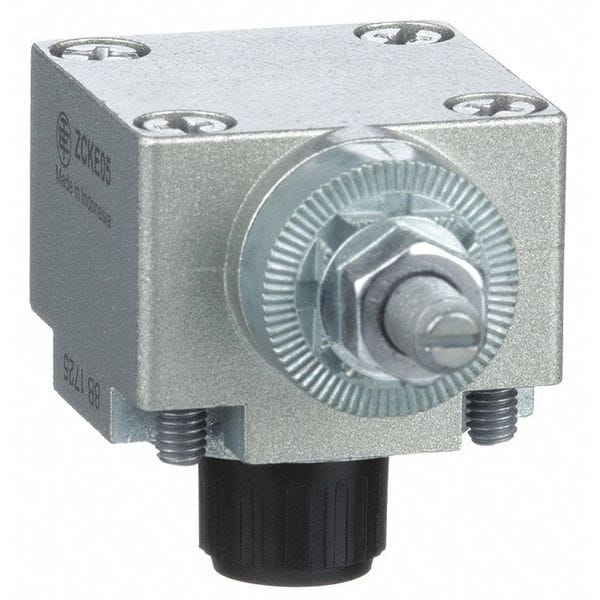

Cabezal de interruptor de límite, giratorio, lateral, 2.21 lb-pul.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rotary Lever |
| Actuator Location | Side |
| Actuator Length | Not Applicable |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. XCKJ |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Movement | Left, Right |
| Operating Force | 2.21 in-lb |
| Operating Temp. | -25 to 70 deg F |
| Standards | CCC, CSA, IEC, UL Listed |
| IP Rating | Not Rated |
| Voltage Rating | Not Applicable |
| Travel | 90 Degrees |
| Description/Special Features | Momentary |
| Amps | 0.27A, 3A |
| Ambient Air Temperature For Operation | -25-70°C |
| Movement Of Operating Head | rotary |
| Product Or Component Type | limit switch head |
| Type Of Operator | without operating lever spring return |
| Head Type | rotary head |
| Switch Actuation | from left and/or right || CW and/or CCW |
| Ambient Air Temperature For Storage | -40-70°C |
| Associated Lever | ZCKY91 || ZCKY52 || ZCKY53 || ZCKY11 || ZCKY13 || ZCKY43 || ZCKY51 || ZCKY14 || ZCKY81 || ZCKY41 || ZCKY59 |
| Associated Body | ZCKJD37H7 || ZCKJ5H29 || ZCKJ8H7 || ZCKJ1H29 || ZCKJ8 || ZCKJ7 || ZCKJ41 || ZCKJ6H29 || ZCKJ11H29 || ZCKJ41H29 || ZCKJ11H7 || ZCKJD35H7 || ZCKJD31H7 || ZCKJ9H29 || ZCKJD31H29 || ZCKJ21 || ZCKJD39H7 || ZCKJ9H7 || ZCKJ4H29 || ZCKJD35H29 || ZCKJ6 || ZCKJ11 || ZCKJ5 || ZCKJ7H29 || ZCKJ1H7 || ZCKJ7H7 || ZCKJ9 || ZCKJ8H29 || ZCKJ6H7 || ZCKJ4104H29 || ZCKJD31 || ZCKJ4104H7 || ZCKJ5H7 || ZCKJ2H7 || ZCKJ404H29 || ZCKJD37H29 || ZCKJ4 || ZCKJ21H7 || ZCKJ1 || ZCKJ2H29 || ZCKJD39H29 || ZCKJD37 || ZCKJ2 || ZCKJD35 || ZCKJ41H7 || ZCKJ404 || ZCKJD39 || ZCKJ4104 || ZCKJ21H29 || ZCKJ4H7 || ZCKJ404H7 |
| Positive Opening | with |
| Series Name | format |
| Type Of Approach | approach, 1 direction |
| Product Compatibility | XCKJ |
| Environmental Characteristic | standard environment |
| Device Short Name | ZCKE |
| Head Material | Metal |
| Plunger Adjustability | Not Applicable |
| Arm Material | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Roller Position | Not Applicable |
| Action | Momentary |
| Includes Actuator | No Actuator Included |
| Arm Adjustability | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Operating Temperature - Maximum | 158 deg F |
| Arm Length - Maximum | Not Applicable |
| Total Travel | 90 Degrees |
| Roller Diameter | Not Applicable |
| Roller Width | Not Applicable |
| Compatible with Series | XCKJ |
| Directional Movement | CCW, CW |
| Arm Length - Minimum | Not Applicable |
| Roller Material | Not Applicable |
| Operating Torque | 2.21 in-lb |
| Roller Adjustability | Not Applicable |
| Package Quantity | 1 |
