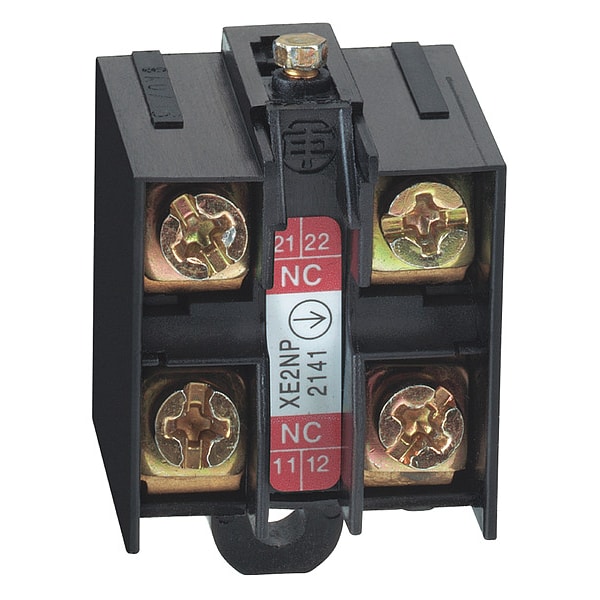

Bloque de contactos de interruptor Lmt 2 240Vac 3A Xe2.
| Item | Limit Switch Contact Block |
|---|---|
| Contact Form | 2NC |
| AC Contact Rating | 3 A @ 240 V |
| DC Contact Rating | 0.27 A @ 250 V |
| IP Rating | Not Rated |
| Material | Not Applicable |
| Electrical Connection | Screw Terminal |
| Number of Mounting Holes | Not Applicable |
| Mounting Hole Diameter | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Compatible with Manufacturer Model Number | ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27 |
| Mounting Hole Horizontal Center to Center Distance | Not Applicable |
| Indicating Light | No Indicating Light Included |
| Body Configuration | Not Applicable |
| Compatible with Series | XCKD, XCKJ, XCKL, XCKM, XCKP, XCKS |
| Contacts Insulation Form | Zb |
| Contact Operation | slow-break, simultaneous |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Contacts Type And Composition | 2 NC |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A |
| Minimum Actuation Speed | 6 m/min |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Series Name | standard format |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
| Device Short Name | XE2N |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Product Compatibility | XCKP || XCKM || XCKJ || XCKD || XCKS || XCKL |
| Contacts Material | silver plated contacts |
| Associated Body | ZCKJ7 || ZCKS7 || ZCKL7 || ZCD27 || ZCKJ7D || ZCKM7 || ZCP27 |
| Product Or Component Type | limit switch contact block |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Positive Opening | with |
| Number Of Poles | 2 |
| Compatible Manufacturer Part Number | ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27 |
| Compatible Manufacturer Model Number | ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27 |
| Package Quantity | 1 |
