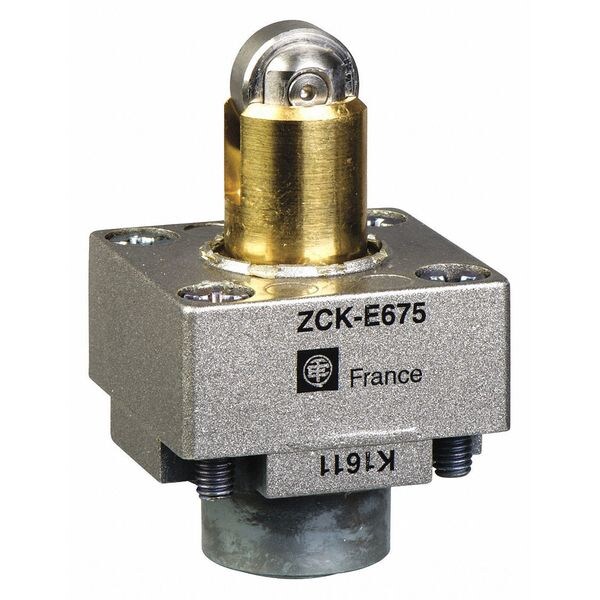

Este interruptor de límite con cabeza de émbolo XCKE es ideal para aplicaciones industriales que requieren precisión y durabilidad. Fabricado por Telemecanique Sensors, líder en la industria de sensores de alta calidad.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Push Roller Plunger |
| Actuator Location | Top |
| Actuator Length | 2 in |
| IP Rating | Not Rated |
| Includes Actuator | Actuator Included |
| NEMA Enclosure Rating | Not Rated |
| Compatible with Series | XCKJ |
| Arm Material | Not Applicable |
| Directional Movement | Linear |
| Arm Length - Minimum | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Arm Adjustability | Not Applicable |
| Action | Momentary |
| Positive Opening | with |
| Ambient Air Temperature For Operation | 10-120°C |
| Type Of Operator | roller plunger spring return metal reinforced |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKJ |
| Series Name | format |
| Head Material | Metal |
| Movement Of Operating Head | linear |
| Environmental Characteristic | high temperature |
| Device Short Name | ZCKE |
| Head Type | plunger head |
| Associated Body | ZCKJ4H7 || ZCKJD37H7 || ZCKJ4 || ZCKJ6H7 || ZCKJ1 || ZCKJ2 || ZCKJ11 || ZCKJ4H29 || ZCKJD39H29 || ZCKJ6H29 || ZCKJ8 || ZCKJ21H7 || ZCKJ9H29 || ZCKJ41 || ZCKJ11H29 || ZCKJD31H29 || ZCKJ7 || ZCKJD37 || ZCKJD35H7 || ZCKJD35 || ZCKJ1H29 || ZCKJ1H7 || ZCKJD31H7 || ZCKJD39 || ZCKJ9H7 || ZCKJ2H29 || ZCKJ7H29 || ZCKJD39H7 || ZCKJ5H29 || ZCKJ2H7 || ZCKJ9 || ZCKJ7H7 || ZCKJD35H29 || ZCKJ8H7 || ZCKJ6 || ZCKJ5 || ZCKJ8H29 || ZCKJ41H7 || ZCKJD31 || ZCKJ11H7 || ZCKJ41H29 || ZCKJD37H29 || ZCKJ21 || ZCKJ5H7 || ZCKJ21H29 |
| Switch Actuation | by 30° cam |
| Type Of Approach | lateral approach, 2 directions |
| Ambient Air Temperature For Storage | 10-120°C |
| Package Quantity | 1 |
