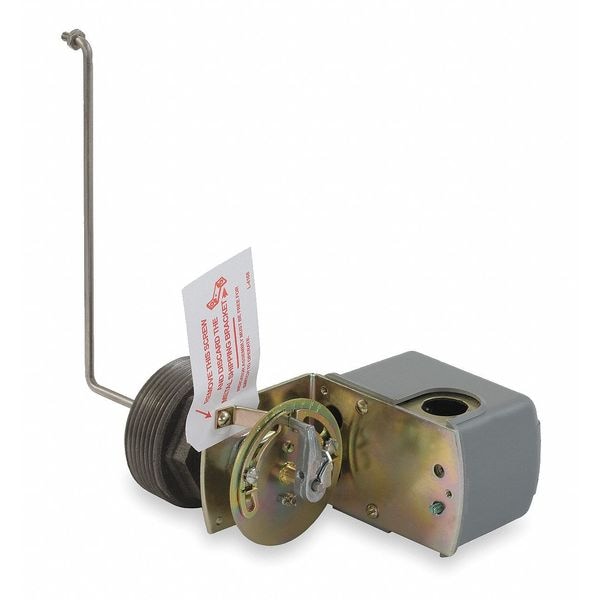

Interruptor de nivel líquido, horizontal, 2-1/2" MNPT, cierre al subir.
| Item | Liquid Level Switch |
|---|---|
| Switch Function | Close On Rise |
| Mounting | Side |
| Float Travel | 4-1/2 in |
| NEMA Rating | 1 |
| Tank Connection Size | 2-1/2 in |
| Max. Pressure | 50 PSI |
| Operating Temp. Range | 250 Degrees F Max |
| Overall Length | 16.06 in |
| Body Material | Steel |
| Includes | Viton Packing - Rod, No Float |
| HP @ 3 Phase - 240V | 5 HP |
| Width | 2.88 in |
| Max. Current | 600 A |
| Height | 5.98 in |
| Features | High-Temperature |
| Stem Material | Stainless Steel |
| Float Material | Stainless Steel |
| Conduit Size | 3 1/2 in |
| Float Rod Angle | 90 Degrees |
| Float Position | Left |
| Float Length | 7.13 in |
| HP @ 1 Phase - 120V | 2 HP |
| Contact Form | DPST-2NC |
| HP @ 1 Phase - 240V | 3 HP |
| Max. Voltage | 475 V |
| Electrical Connections | Screw Clamp |
| Stem Length | 4.37 in |
| Float Dia. | 2.58 in |
| Enclosure Material | polypropylene or equivalent |
| Standards | CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158 |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Proof Pressure | 50 psi |
| Electrical Connection | Screw Clamp |
| Operating Temperature - Minimum | -22 Degrees F |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Voltage Rating - Maximum | 575 V |
| Mounting Style | Closed Tank Vertical |
| NEMA Enclosure Rating | 1 |
| Overall Height | 5.98 in |
| Stem Thread Size | 2-1/2 in |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Current Rating - Maximum | Not Applicable |
| Overall Width | 2.88 in |
| Manufacturer Warranty Length | 18 mo |
| Float Diameter | 2.58 in |
| Minimum Media Specific Gravity | 0.85 |
| Operating Temperature - Maximum | 220 Degrees F |
| Series | 9037H |
| Product Destination | for closed tank |
| Materials In Contact With Fluid | stainlesss steel 304 || stainless steel 316 || yellow brass || viton || cast iron |
| Device Mounting | screw-in bushing |
| Contact Operation | contacts close on liquid rise |
| Product Or Component Type | float switch |
| Operating Position | vertical position only |
| Motor Power Kw | 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC |
| Local Signalling | with external pointer |
| Contacts Type And Composition | Form YY, 2 NC snap action, DPST-DB |
| Cable Entry Number | 3 knock-outs for 1/2" conduit UL 508 |
| Ambient Air Temperature For Operation | -22-220°F |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Controlled Fluid | fresh water specific gravity of 0.85 in or higher 0-250°F || sea water specific gravity of 0.85 in or higher 0-250°F || hydraulic oil specific gravity of 0.85 in or higher 0-250°F || corrosive fluid specific gravity of 0.85 in or higher 0-250°F |
| Nema Degree Of Protection | NEMA 1 UL 50 |
| Device Application | closed tank |
| Ambient Air Temperature For Storage | -22-220°F |
| Device Short Name | 9,037 H |
| Electrical Circuit Type | power circuit |
| Float Movement | 6...11.5 in adjustable |
| Terminal Block Type | 4 terminals |
| Maximum Operating Rate | 60 cyc/mn |
| Terminals Description Iso N°1 | line-load-load-line |
| Product Specific Application | liquid level control |
| Mechanical Durability | 300 cycles |
| Factory Modification | omit float |
| Electrical Durability | 100 cycles 60 cyc/mn |
| Product Certifications | UL listed file E12158 || CSA file LR25490 |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Kit Composition | rod || float switch || float |
| Package Quantity | 1 |
