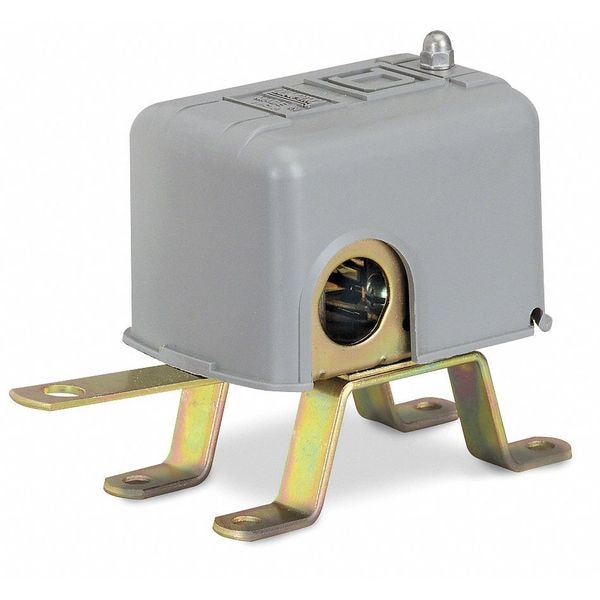

Válvula de nivel líquido, tanque de apertura vertical, cierre al subir.
| Item | Open Liquid Level Switch |
|---|---|
| Switch Function | Close On Rise |
| Mounting | Open Tank |
| Float Travel | 1-1/4 in |
| NEMA Rating | 1 |
| VA Rating | 460 V AC |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| Overall Length | 4-1/4 in |
| Contact Form | DPST-NO, NC |
| Float Dia. | 7 in |
| Amps | 10 A |
| Float Position | Below |
| Float Material | Stainless Steel |
| Body Material | Thermoplastic |
| Max. Voltage | 600 |
| Electrical Connections | Screw Clamp |
| HP @ 1 Phase - 120V | 1 HP |
| Features | (3) Knock-Outs Conduit Entries for 1/2 in |
| Float Length | 7 in |
| HP @ 1 Phase - 240V | 2 HP |
| Conduit Size | 3 1/2 in |
| Height | 5-1/2 in |
| HP @ 3 Phase - 240V | 0 HP |
| Standards | CE, CSA File No.LR25490, UL 508, UL E12158 |
| Width | 3.43 in |
| Max. Current | 600 A |
| Enclosure Material | noryl thermoplastic resin or equivalent |
| Float Rod Angle | Vertical |
| Product Type | Open Liquid Level Switch |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Electrical Connection | Screw Clamp |
| Series | 9036G |
| Float Diameter | 7 in |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| NEMA Enclosure Rating | 1 |
| Minimum Media Specific Gravity | 0.85 |
| Overall Width | 3.43 in |
| Current Rating | 600 A |
| Mounting Style | Open Tank Vertical |
| Horsepower @ Three Phase - 240V AC | 0 HP |
| Voltage Rating - Maximum | 575 V |
| Overall Height | 5-1/2 in |
| Operating Temperature - Maximum | 220 Degrees F |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Minimum | -22 Degrees F |
| Motor Power Kw | 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC || 0.75 kW 1 hp)115 V AC, 1 phase || 1.5 kW 2 hp)230 V AC, 1 phase || 1.5 kW 2 hp)460 V AC, 1 phase || 1.5 kW 2 hp)475 V AC, 1 phase |
| Ambient Air Temperature For Storage | -22-220°F |
| Electrical Circuit Type | power circuit |
| Factory Modification | without |
| Device Application | open tank |
| Product Specific Application | liquid level control |
| Maximum Operating Rate | 60 cyc/mn |
| Product Certifications | CSA file LR25490 || UL listed file E12158 |
| Contacts Type And Composition | snap action, DPST-DB, Form Zb, NC-NO |
| Mechanical Durability | 300 cycles |
| Electrical Durability | 100 cycles 60 cyc/mn |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Kit Composition | rod and float are to be choosen in accessories || float switch |
| Ambient Air Temperature For Operation | -22-220°F |
| Terminals Description Iso N°1 | line-load-load-line |
| Product Destination | for open tank |
| Product Or Component Type | float switch |
| Device Short Name | 9036G |
| Force Down To Trip | 27 ozf long lever || 39 ozf short lever |
| Device Mounting | pedestal |
| Nema Degree Of Protection | NEMA 1 UL 50 |
| Controlled Fluid | fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher |
| Local Signalling | without |
| Terminal Block Type | 4 terminals |
| Cable Entry Number | 3 knock-outs for 1/2" conduit UL 508 |
| Force Up To Trip | 21 ozf long lever || 33 ozf short lever |
| Contact Operation | contacts close on liquid rise |
| Float Movement | variable adjustable |
| Operating Position | vertical position only |
| Package Quantity | 1 |
