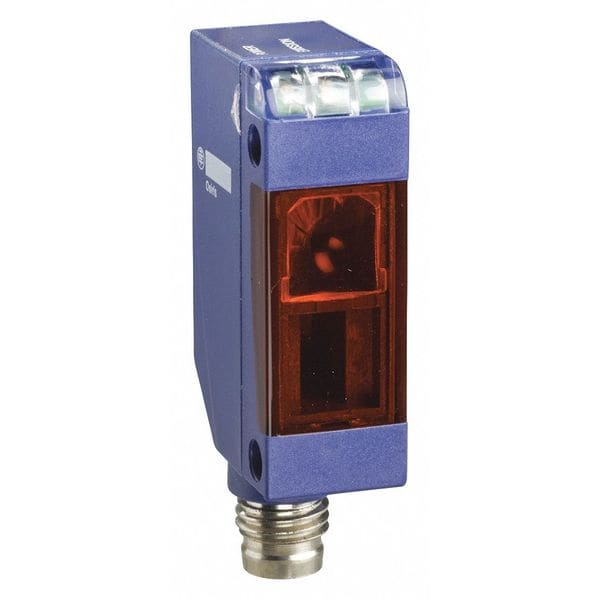

Conexión miniatura rectangular en M8 de corriente continua NPN Xum.
| Item | Miniature Rectangular Xum Npn Dc M8 Conn |
|---|---|
| Height | 45 mm |
| Width | 12 mm |
| Depth | 20 mm |
| Material | Plastic |
| Electrical Connection | 1 male connector M8, 4 pins |
| Current Consumption | 35 mA no-load |
| Maximum Voltage Drop | <1.5 V closed state |
| Setting-Up | self teaching |
| Switching Frequency | <= 250 Hz || 240 Hz |
| Wiring Technique | 3-wire |
| Ambient Air Temperature For Operation | -25-55°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Detection System | multimode |
| Add On Output | with alarm output, 50 mA |
| Maximum Delay First Up | 100 msec |
| Maximum Delay Response | 2 msec |
| Output Type | solid state |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Electronic Sensor Type | photo-electric sensor |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Product Certifications | UL || CE || CSA |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Maximum Sensing Distance | 14 m thru beam || 4 m polarised reflex || 0.1 m diffuse with background suppression || 0.55 m diffuse |
| Enclosure Material | PBT |
| Type Of Output Signal | discrete |
| Wire Insulation Material | PVC |
| Discrete Output Type | NPN |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Sensor Name | XUM |
| Emission | infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex |
| Ip Degree Of Protection | IP65 IEC 60529 || IP67 IEC 60529 |
| Maximum Delay Recovery | 2 msec |
| [Sn] Nominal Sensing Distance | 3-3 m polarised reflex need reflector XUZC50 || 10-10 m thru beam need a transmitter XUM0AKSAM8T || 0.1-0.1 m diffuse with background suppression || 0.4-0.4 m diffuse |
| Status Led | 1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state |
| Sensor Design | miniature |
| Supply Circuit Type | DC |
| Lens Material | PMMA |
| Series Name | general purpose multimode |
| Package Quantity | 1 |
