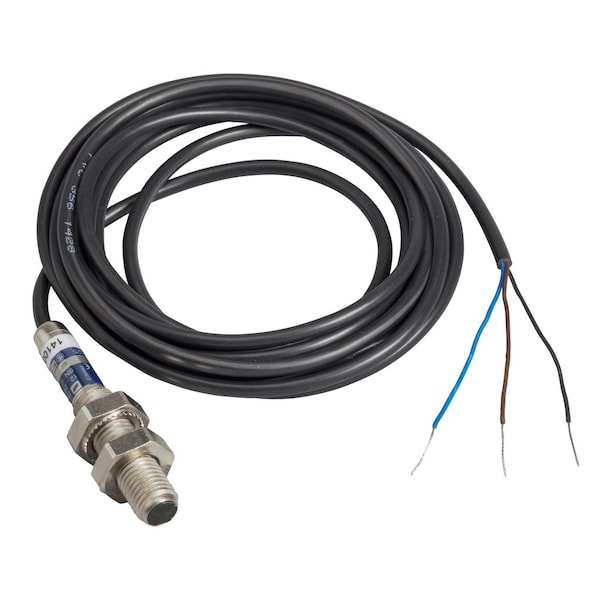

Sensor fotoeléctrico -XUA-emisor-
| Item | Photo-electric sensor - XUA - emitter - |
|---|---|
| Material | Metal |
| Electrical Connection | cable |
| Cable Length | 2 m |
| Diameter | 8 mm |
| Length | 48 mm |
| Current Consumption | <= 15 mA |
| Add On Input | test by emission breaking |
| Sensor Name | XUA |
| Cable Composition | 3 x 0.14 mm² |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Vibration Resistance | 7 gn +/- 1 mm 10-55 Hz) IEC 60068-2-6 |
| Emission | infrared thru beam |
| Wire Insulation Material | PvR |
| Line Of Sight Type | axial |
| Wiring Technique | 3-wire |
| Setting-Up | without sensitivity adjustment |
| Product Certifications | CE || cULus |
| Electronic Sensor Type | photo-electric sensor transmitter |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Maximum Delay First Up | 20 msec |
| Lens Material | PMMA |
| Sensor Design | cylindrical M8 |
| Detection System | thru beam |
| Ambient Air Temperature For Operation | -25-55°C |
| [Sn] Nominal Sensing Distance | 2-2 m thru beam need a receiver |
| Supply Circuit Type | DC |
| Ambient Air Temperature For Storage | -30-70°C |
| Ip Degree Of Protection | IP67 IEC 60529 || IP65 IEC 60529 |
| Cable Outer Diameter | 3.5 mm |
| Enclosure Material | Nickel Plated Brass |
| Series Name | Application assembly |
| Supply Voltage Limits | 10-30 V DC |
| Package Quantity | 1 |
