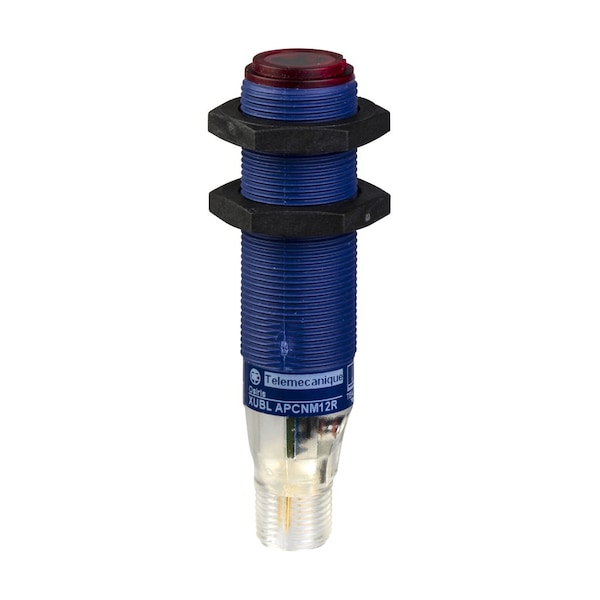

Sensor fotoeléctrico-XUB-receptor
| Item | Photo-electric sensor - XUB - receiver - |
|---|---|
| Material | Plastic |
| Electrical Connection | 1 male connector M12, 4 pins |
| Current Consumption | 25 mA no-load |
| Length | 76 mm |
| Diameter | 18 mm |
| Electronic Sensor Type | photo-electric sensor receiver |
| Maximum Delay Response | 0.4 msec |
| Emission | red laser thru beam class 1 670 nm IEC 60825-1 |
| Wiring Technique | 3-wire |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Supply Circuit Type | DC |
| Ambient Air Temperature For Operation | -10-45°C |
| Output Type | solid state |
| Switching Frequency | <= 1500 Hz |
| Enclosure Material | PBT |
| Maximum Delay First Up | 80 msec |
| Product Certifications | UL, CE || CSA |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Discrete Output Type | PNP |
| Maximum Delay Recovery | 0.4 msec |
| Sensor Name | XUB |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Series Name | Application material handling |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 |
| Type Of Output Signal | discrete |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Supply Voltage Limits | 10-30 V DC |
| Detection System | thru beam |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Sensor Design | cylindrical M18 |
| Lens Material | PMMA |
| Status Led | 1 LED green)supply on || 1 LED yellow)output state || 1 LED red)stability |
| Ambient Air Temperature For Storage | -40-70°C |
| [Sn] Nominal Sensing Distance | 0-100 m thru beam need a transmitter XUBLAKCNM12T |
| Maximum Voltage Drop | <1.5 V closed state |
| Package Quantity | 1 |
