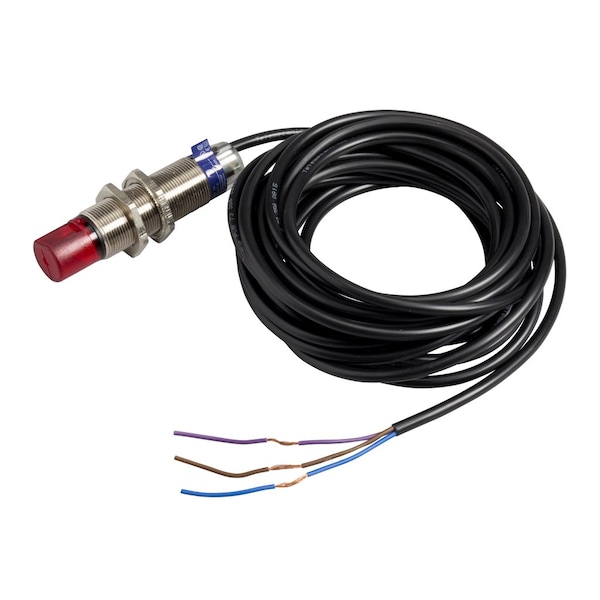

Sensor fotoeléctrico de reflexión XUB-9.
| Item | Photo-electric sensor - XUB - reflex - 9 |
|---|---|
| Material | Metal |
| Electrical Connection | cable |
| Cable Length | 2 m |
| Diameter | 18 mm |
| Length | 62 mm |
| Current Consumption | 35 mA no-load |
| Setting-Up | without sensitivity adjustment |
| Switching Frequency | <= 500 Hz |
| Line Of Sight Type | lateral |
| Ambient Air Temperature For Storage | -40-70°C |
| Emission | infrared reflex |
| Series Name | general purpose single mode |
| Maximum Delay Response | 1 msec |
| Type Of Output Signal | discrete |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Add On Output | without |
| Maximum Delay First Up | 15 msec |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 |
| Sensor Design | cylindrical M18 |
| Supply Voltage Limits | 10-36 V DC |
| Supply Circuit Type | DC |
| Maximum Delay Recovery | 1 msec |
| Detection System | reflex |
| Discrete Output Type | PNP |
| Sensor Name | XUB |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Wire Insulation Material | PvR |
| Wiring Technique | 3-wire |
| Electronic Sensor Type | photo-electric sensor |
| Maximum Voltage Drop | <1.5 V closed state |
| Lens Material | PMMA |
| Maximum Sensing Distance | 5.5 m reflex |
| Output Type | solid state |
| Status Led | 1 LED yellow)output state |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Product Certifications | CE, CSA || UL |
| [Sn] Nominal Sensing Distance | 4-4 m reflex need reflector XUZC50 |
| Discrete Output Function | 1 NO |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Enclosure Material | Nickel Plated Brass |
| Ambient Air Temperature For Operation | -25-55°C |
| Package Quantity | 1 |
