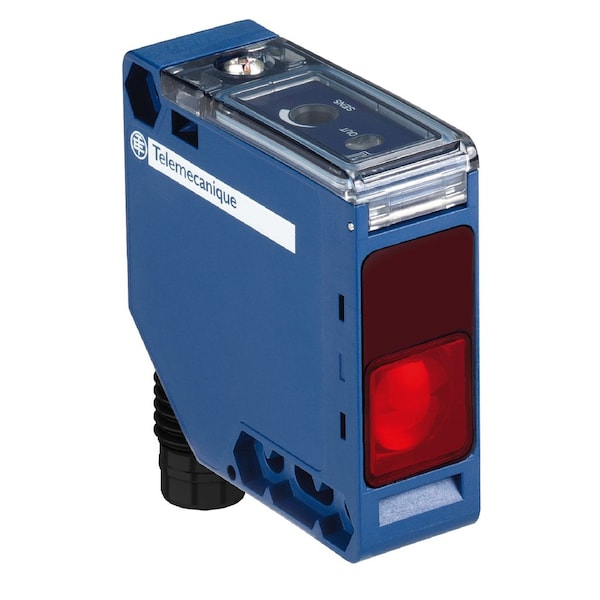

Sensor fotoeléctrico - XUK-emisor -
| Item | Photo-electric sensor - XUK - emitter - |
|---|---|
| Height | 50 mm |
| Width | 18 mm |
| Depth | 50 mm |
| Material | Plastic |
| Electrical Connection | 1 male connector M12, 4 pins |
| Current Consumption | 20 mA no-load |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Ip Degree Of Protection | IP65 double insulation IEC 60529 |
| Enclosure Material | PBT |
| Maximum Delay Response | 2 msec |
| Maximum Voltage Drop | <1.5 V closed state |
| Electronic Sensor Type | photo-electric sensor transmitter |
| Product Certifications | CE, CSA || UL |
| Supply Circuit Type | DC |
| Detection System | thru beam |
| Maximum Delay Recovery | 2 msec |
| Add On Input | test by emission breaking |
| Ambient Air Temperature For Storage | -40-70°C |
| Maximum Sensing Distance | 35 m (thru beam) |
| [Sn] Nominal Sensing Distance | 30-30 m thru beam need a receiver |
| Emission | infrared thru beam |
| Maximum Delay First Up | 300 msec |
| Wiring Technique | 3-wire |
| Series Name | general purpose multimode |
| Ambient Air Temperature For Operation | -25-55°C |
| Supply Voltage Limits | 10-36 V DC |
| Sensor Design | compact 50 x 50 |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Sensor Name | XUK |
| Status Led | 1 LED green)supply on |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Setting-Up | without sensitivity adjustment |
| Switching Frequency | <= 250 Hz |
| Lens Material | PMMA |
| Package Quantity | 1 |
