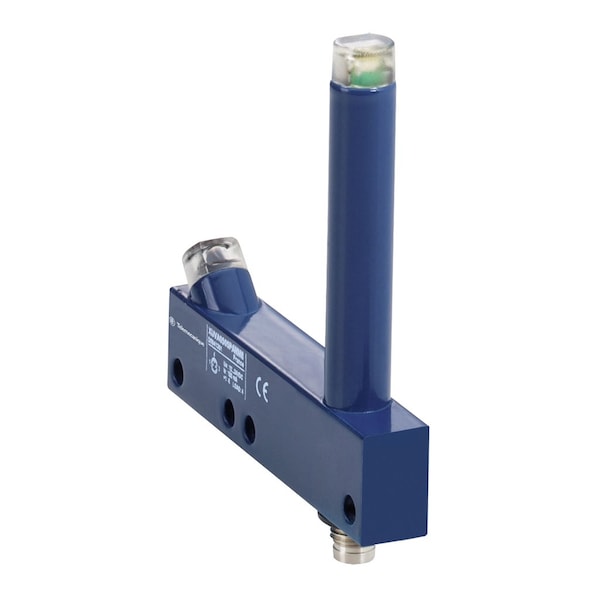

Sensor fotoeléctrico de horquilla XUV de 80 metros.
| Item | Photo-electric sensor - XUV - fork - 80m |
|---|---|
| Material | Metal/Plastic |
| Electrical Connection | 1 male connector M8, 3 pins |
| Current Consumption | < 20 mA no-load |
| Wiring Technique | 3-wire |
| Ip Degree Of Protection | IP65 || IP67 |
| Immunity To Ambient Light | 10000 lux natural light || 5000 lux incandescent bulb |
| Discrete Output Type | PNP |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Supply Voltage Limits | 10-30 V DC |
| Product Specific Application | detection on small conveyor |
| Supply Circuit Type | DC |
| Sensor Design | fork L |
| Sensor Name | XUVA |
| Series Name | general purpose |
| Output Type | solid state |
| Emission | red LED, modulated |
| Product Certifications | CE |
| Maximum Voltage Drop | <1.5 V closed state |
| [Sn] Nominal Sensing Distance | 80-80 mm |
| Vibration Resistance | 7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6 |
| Detection System | thru beam |
| Switching Frequency | 4000 Hz |
| Type Of Output Signal | discrete |
| Discrete Output Function | 1 NO |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| Enclosure Material | glass, painted aluminium and polyamide |
| Electronic Sensor Type | photo-electric sensor |
| Spot Diameter | 0.05 in |
| Passage Depth | 80 mm |
| Ambient Air Temperature For Storage | -40-80°C |
| Ambient Air Temperature For Operation | -10-60°C |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Passage Width | 80 mm |
| Status Led | output state 1 LED yellow) |
| Package Quantity | 1 |
