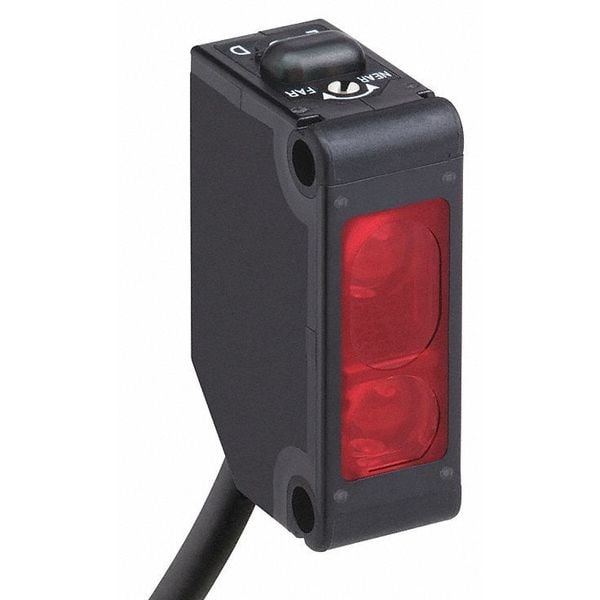

Sensor de fotocélula Bgs Pnp Normalmente Abierto 2 metros de cable
| Item | Photocell Sensor Bgs Pnp Nonc 2M Cable |
|---|---|
| Height | 38 mm |
| Width | 12 mm |
| Material | Plastic |
| Depth | 27 mm |
| Electrical Connection | cable |
| Cable Length | 2 m |
| Current Consumption | 35 mA no-load |
| Length | 11 mm |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Status Led | 1 LED yellow)output state || 1 LED red)instability |
| Ambient Air Temperature For Operation | -25-55°C |
| Wiring Technique | 3-wire |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Maximum Sensing Distance | 0.3 m diffuse with background suppression |
| Ambient Air Temperature For Storage | -30-70°C |
| Sensor Name | XUM |
| Series Name | general purpose single mode |
| Wire Insulation Material | PVC |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Setting-Up | without sensitivity adjustment |
| Lens Material | PC |
| Emission | red diffuse with background suppression |
| [Sn] Nominal Sensing Distance | 0.3-0.3 m diffuse with background suppression |
| Supply Circuit Type | DC |
| Supply Voltage Limits | 10-30 V DC |
| Immunity To Ambient Light | 3000 lux natural light || 3000 lux incandescent light |
| Maximum Delay Recovery | 1 msec |
| Maximum Delay Response | 1 msec |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Maximum Delay First Up | 30 msec |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Detection System | diffuse |
| Type Of Output Signal | discrete |
| Product Certifications | UL || CSA || CE |
| Maximum Voltage Drop | <1.5 V closed state |
| Switching Frequency | <= 500 Hz |
| Output Type | solid state |
| Sensor Design | miniature |
| Discrete Output Type | PNP |
| Enclosure Material | PBT |
| Electronic Sensor Type | photo-electric sensor |
| Package Quantity | 1 |
