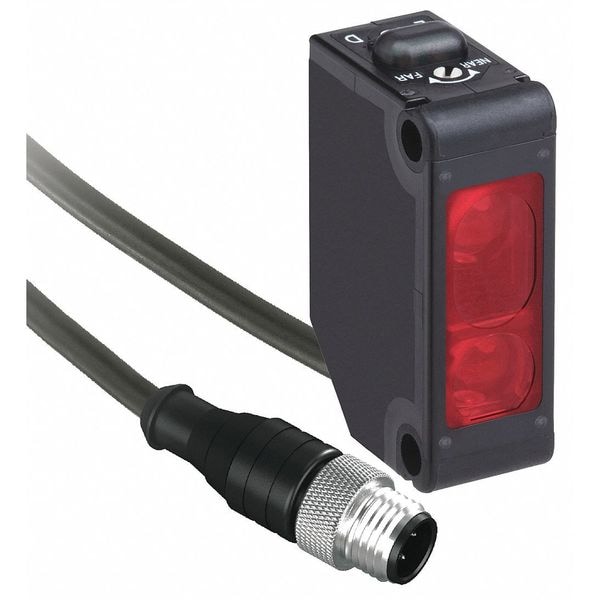

Sensor de fotocelda para transmisión PNP NO/NC remoto.
| Item | Photocell Sensor Transp Pnp Nonc Remote |
|---|---|
| Height | 33 mm |
| Width | 11 mm |
| Depth | 20 mm |
| Material | Plastic |
| Electrical Connection | remote male connector M12, 4 pins |
| Cable Length | 0.3 m |
| Length | 11 mm |
| Current Consumption | <= 10 mA no-load |
| Ambient Air Temperature For Storage | -30-70°C |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Type Of Output Signal | discrete |
| Product Certifications | cURus || CE |
| Sensor Name | XUM |
| Vibration Resistance | 20 gn +/- 1.5 mm 10-500 Hz) IEC 60068-2-6 |
| Shock Resistance | 50 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Status Led | 1 LED green)instability || 1 LED orange)output state |
| Wire Insulation Material | PVC |
| Enclosure Material | PBT |
| Electronic Sensor Type | photo-electric sensor |
| Sensor Design | miniature |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Maximum Delay Response | 1 msec |
| Ambient Air Temperature For Operation | -25-55°C |
| Discrete Output Type | PNP |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Output Type | solid state |
| Supply Voltage Limits | 10-30 V DC |
| Series Name | Application packaging |
| Detection System | reflex |
| Maximum Voltage Drop | < closed state |
| [Sn] Nominal Sensing Distance | 2-2 m reflex need reflector XUZC50 || 1-1 m reflex need reflector XUZC50CR |
| Emission | infrared reflex |
| Wiring Technique | 3-wire |
| Supply Circuit Type | DC |
| Product Specific Application | detection of transparent object |
| Setting-Up | sensitivity adjustment |
| Immunity To Ambient Light | 3000 lux natural light || 3000 lux incandescent light |
| Lens Material | PC |
| Maximum Delay First Up | 100 msec |
| Package Quantity | 1 |
