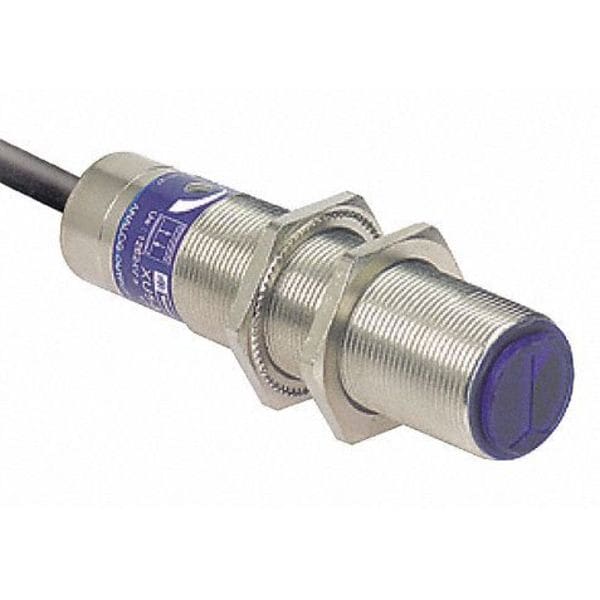

Sensor fotoeléctrico 240V 200mA
| Item | Photoelec Sensor 240V 200Ma |
|---|---|
| Material | Metal |
| Electrical Connection | cable |
| Length | 82 mm |
| Diameter | 18 mm |
| Cable Length | 2 m |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Sensor Name | XU5 |
| Maximum Sensing Distance | 0.6 m |
| Wiring Technique | 2-wire |
| Detection System | diffuse |
| Series Name | general purpose single mode |
| Supply Voltage Limits | 20-264 V AC, DC |
| Sensor Design | cylindrical M18 |
| Switching Capacity In Ma | 10...200 mA to be used with 0.4 A quick-blow fuse in series with the load) |
| Add On Output | without |
| Wire Insulation Material | PvR |
| Maximum Voltage Drop | < closed state |
| Electronic Sensor Type | photo-electric sensor |
| Supply Circuit Type | DC, AC |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Maximum Residual Current | 1.5 mA open state |
| Lens Material | PMMA |
| Status Led | 1 LED yellow)output state |
| Setting-Up | sensitivity adjustment |
| Maximum Delay First Up | 300 msec |
| [Sn] Nominal Sensing Distance | 0.4-0.4 m diffuse |
| Output Type | solid state |
| [Us] Rated Supply Voltage | 24...240 V AC, DC |
| Discrete Output Function | 1 NC |
| Enclosure Material | Nickel Plated Brass |
| Emission | infrared diffuse |
| Switching Frequency | <= 25 Hz |
| Maximum Delay Response | 20 msec |
| Ambient Air Temperature For Operation | -25-55°C |
| Type Of Output Signal | discrete |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Certifications | UL, CSA || CE |
| Line Of Sight Type | axial |
| Maximum Delay Recovery | 20 msec |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 |
| Package Quantity | 1 |
