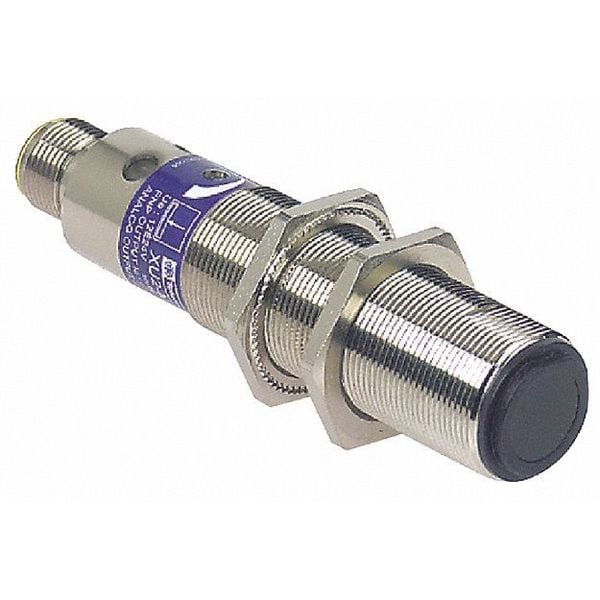

Sensor fotoeléctrico de 18mm.
| Item | Photoelectric Sensor 18Mm |
|---|---|
| Material | Metal |
| Electrical Connection | 1 male connector M12, 4 pins |
| Diameter | 18 mm |
| Length | 95 mm |
| Current Consumption | <= 55 mA no-load |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz) IEC 60068-2-6 |
| Add On Output | with analogue output |
| Maximum Delay Recovery | 15 msec |
| Wiring Technique | 3-wire |
| Add On Input | breaking test |
| Supply Voltage Limits | 10-30 V DC |
| Maximum Delay Response | 15 msec |
| Discrete Output Type | PNP |
| Type Of Output Signal | discrete || analogue |
| [Sn] Nominal Sensing Distance | 50-50 m thru beam |
| Maximum Sensing Distance | 70 m |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Detection System | thru beam |
| Discrete Output Function | 1 NO |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Product Certifications | UL, CSA || CE |
| Series Name | Application material handling |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Emission | infrared thru beam |
| Sensor Name | XU2 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Electronic Sensor Type | photo-electric sensor |
| Maximum Delay First Up | 50 msec |
| Sensor Design | cylindrical M18 |
| Status Led | 1 LED green)supply on || 1 LED yellow)operation |
| Enclosure Material | Nickel Plated Brass |
| Setting-Up | sensitivity adjustment |
| Maximum Voltage Drop | <1.5 V closed state |
| Ambient Air Temperature For Operation | -25-55°C |
| Switching Frequency | <= 30 Hz |
| Kit Composition | transmitter + receiver |
| Analogue Output Range | 4...20 mA |
| Output Type | solid state |
| Lens Material | PMMA |
| Supply Circuit Type | DC |
| Line Of Sight Type | axial |
| Ambient Air Temperature For Storage | -40-70°C |
| Package Quantity | 1 |
