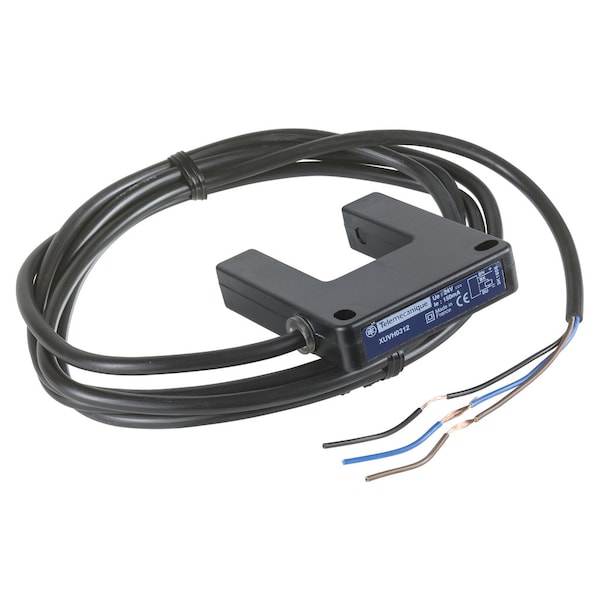

Sensor fotoeléctrico 24V 100mA +Opciones
| Item | Photoelectric Sensor 24V 100Ma +Options |
|---|---|
| Height | 59 mm |
| Width | 14 mm |
| Material | Plastic |
| Depth | 68 mm |
| Electrical Connection | cable |
| Current Consumption | <= 20 mA no-load |
| Cable Length | 2 m |
| Maximum Delay Recovery | 0.5 msec |
| Maximum Delay Response | 0.5 msec |
| Supply Circuit Type | DC |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Discrete Output Type | PNP |
| Setting-Up | without sensitivity adjustment |
| Type Of Output Signal | discrete |
| Discrete Output Function | 1 NO |
| Ip Degree Of Protection | IP54 IEC 60529 |
| Switching Frequency | <= 1 kHz |
| Vibration Resistance | 7 gn +/- 1 mm 10-42 Hz) IEC 60068-2-6 |
| [Sn] Nominal Sensing Distance | 30-30 mm |
| Wiring Technique | 3-wire |
| Maximum Voltage Drop | <1.5 V closed state |
| Product Certifications | CE |
| Passage Depth | 40 mm |
| Product Specific Application | detection of flags in lifts/transtockers |
| Switching Capacity In Ma | <= 150 mA overload and short-circuit protection) |
| Sensor Design | fork |
| Ambient Air Temperature For Storage | -20-70°C |
| Output Function Governance | dark |
| Cable Outer Diameter | 5 mm |
| Passage Width | 30 mm |
| Sensor Name | XUV |
| Enclosure Material | PC, ABS |
| [Us] Rated Supply Voltage | 24 V DC reverse polarity protection |
| Status Led | output state 1 LED red) |
| Series Name | Application material handling |
| Output Type | solid state |
| Electronic Sensor Type | photo-electric sensor |
| Emission | infrared |
| Supply Voltage Limits | 19-38 V DC |
| Cable Composition | 3 mm² x 0.34 mm² |
| Detection System | thru beam |
| Maximum Delay First Up | 30 msec |
| Wire Insulation Material | PvR |
| Lens Material | PMMA |
| Ambient Air Temperature For Operation | -5-55°C |
| Package Quantity | 1 |
