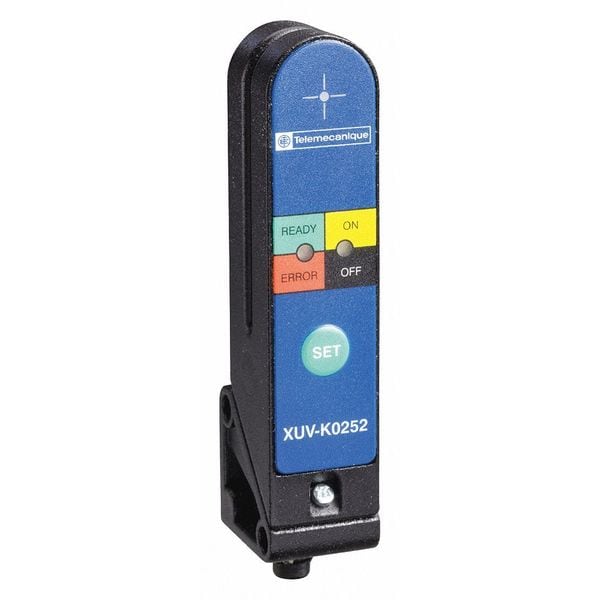

Sensor fotoeléctrico de 24V y 100mA con opciones adicionales.
| Item | Photoelectric Sensor 24V 100Ma +Options |
|---|---|
| Height | 20 mm |
| Width | 20 mm |
| Depth | 90 mm |
| Material | Metal |
| Electrical Connection | 1 male connector M8 adjustable through 90°, 4 pins |
| Current Consumption | <= 50 mA no-load |
| Sensor Design | fork |
| Detection System | thru beam |
| Maximum Delay Response | 0.1 msec |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Supply Circuit Type | DC |
| Switching Frequency | <= 25 kHz |
| Discrete Output Function | 2 NO/NC programmable |
| Product Specific Application | detection of labels |
| Product Certifications | CE |
| Passage Width | 2 mm |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Passage Depth | 50 mm |
| Enclosure Material | zinc alloy |
| Emission | infrared |
| Supply Voltage Limits | 10-30 V DC |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Wiring Technique | 3-wire |
| Lens Material | Glass |
| Maximum Voltage Drop | <1.5 V closed state |
| Maximum Delay Recovery | 0.1 msec |
| Series Name | Application packaging |
| Electronic Sensor Type | photo-electric sensor |
| [Sn] Nominal Sensing Distance | 2-2 mm |
| Output Type | solid state |
| Setting-Up | teach mode |
| Type Of Output Signal | discrete |
| Sensor Name | XUV |
| Maximum Delay First Up | 30 msec |
| Ambient Air Temperature For Operation | 0-55°C |
| Discrete Output Type | PNP, NPN |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Status Led | sensor ready 1 LED green) || read error 1 LED red) || output state 1 LED yellow) |
| Output Clamping Resistor | 10 kOhm |
| Ambient Air Temperature For Storage | -20-70°C |
| Package Quantity | 1 |
