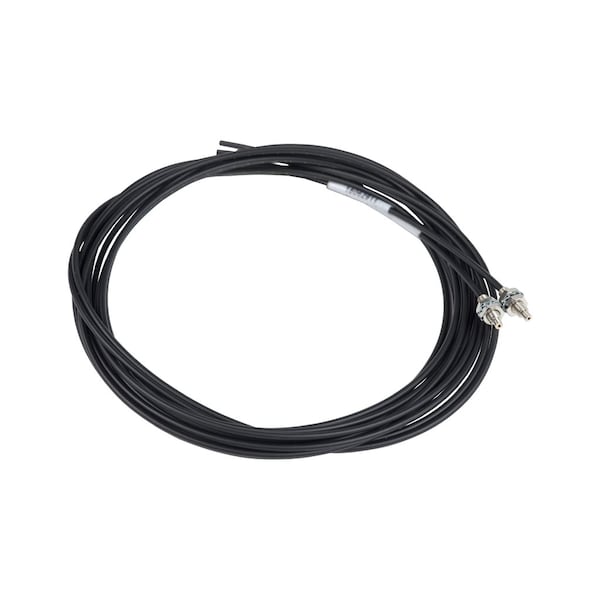

Cable de sensor fotoeléctrico de 2 metros +Opciones
| Item | Photoelectric Sensor Cable 2M +Options |
|---|---|
| Sheath Material | PE |
| Vibration Resistance | +/- 1.5 mm 10-55 Hz)IEC 60068-2-6 || 7 gn 10-55 Hz)IEC 60068-2-6 |
| Optic Fiber Length | 2 m |
| Ambient Air Temperature For Storage | -40-80°C |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Sensor Design | fiber design |
| Ip Degree Of Protection | IP64 conforming to IEC 60529 || IP641 conforming to NF C 20-010 |
| Detection System | thru beam |
| End Fitting Type | M2.6 x 0.45, standard thread end fitting |
| Optic Fiber Material | PMMA |
| Product Destination | XUDA |
| External Diameter | 2.2 mm |
| Electronic Sensor Type | photo-electric sensor |
| [Sn] Nominal Sensing Distance | 0.2-0.2 m || 0.2-0.2 m XUFZ02 || 1.5-1.5 m XUFZ01 |
| Optic Fiber Core | 1 x Ø 1 mm |
| Optic Fiber Use | general use |
| Ambient Air Temperature For Operation | -25-60°C |
| Sensor Name | XUF |
| Minimum Bending Radius | 25 mm |
| Thread Type | M4 x 0.7 |
| Package Quantity | 1 |
