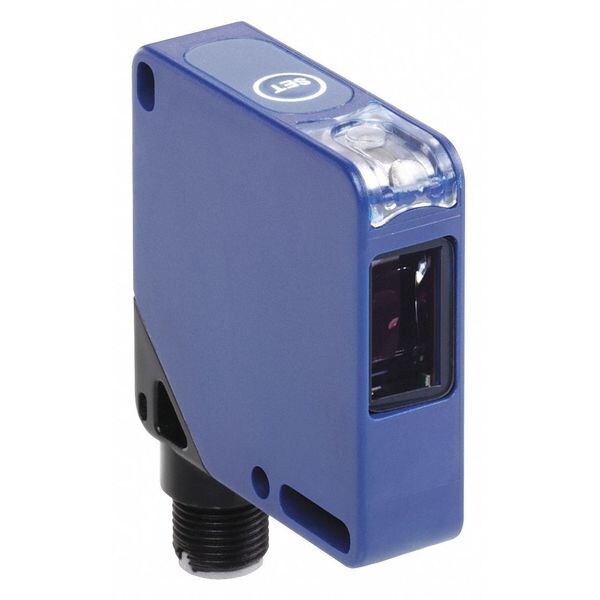

Sensor fotoeléctrico compacto de 50x50.
| Item | Photoelectric Sensor Compact 50X50 |
|---|---|
| Height | 50 mm |
| Width | 15 mm |
| Depth | 50 mm |
| Material | Plastic |
| Electrical Connection | 1 male connector M12 adjustable through 90°, 4 pins |
| Current Consumption | <= 30 mA no-load |
| Maximum Delay Recovery | 0.1 msec |
| Supply Voltage Limits | DC |
| Sensor Design | compact 50 x 50 |
| Output Type | solid state |
| Status Led | stability 1 LED green) || error 1 LED green/red (flashing)) || output state 1 LED yellow) |
| Add On Input | remote teaching |
| Type Of Output Signal | discrete |
| Maximum Voltage Drop | < closed state |
| Series Name | Application packaging |
| Switching Frequency | <= 5 kHz |
| Output Function Governance | light or dark teaching |
| Lens Material | Glass |
| Shock Resistance | 30 gn 11 ms) 6 shocks on each axis IEC 60068-2-27 |
| Switching Capacity In Ma | <= 100 mA reverse polarity, overload and short-circuit protection) |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Electronic Sensor Type | photo-electric sensor |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Resolution | 0.5 mm |
| Product Certifications | cULus || CE |
| Maximum Passing Speed Of Object | 2.5 m/s 1 mm |
| Wiring Technique | 3-wire |
| Enclosure Material | ABS |
| Discrete Output Type | PNP |
| Vibration Resistance | +/-0.5 mm 10-55 Hz) IEC 60068-2-6 |
| Setting-Up | sensitivity adjustment |
| Maximum Delay Response | 0.1 msec |
| Depth Of Field | +/- 2 mm |
| Detection System | diffuse |
| Ambient Air Temperature For Operation | -10-55°C |
| Ambient Air Temperature For Storage | -20-70°C |
| Discrete Output Function | 1 NO or 1 NC programmable |
| [Sn] Nominal Sensing Distance | 19-19 mm Ø 3.5 mm |
| Emission | white LED |
| Product Specific Application | colour mark |
| Sensor Name | XUK |
| Supply Circuit Type | DC |
| Add On Output | without |
| Package Quantity | 1 |
