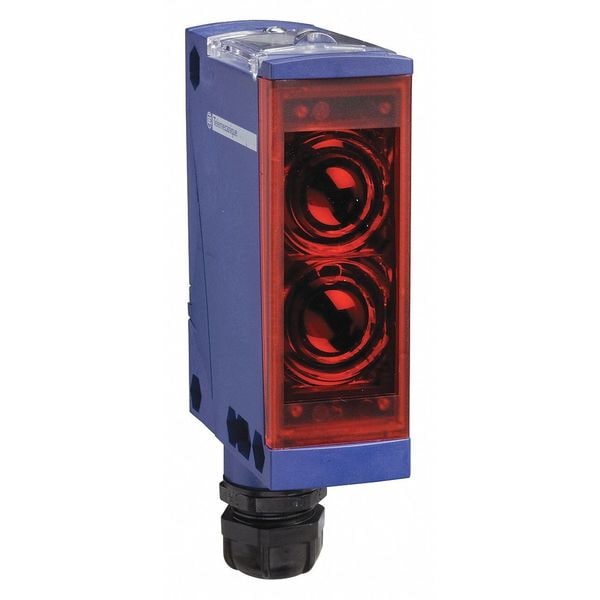

Sensor fotoeléctrico compacto Xux.
| Item | Photoelectric Sensor Compact Xux |
|---|---|
| Height | 92 mm |
| Width | 31 mm |
| Material | Plastic |
| Depth | 77 mm |
| Electrical Connection | screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor |
| Current Consumption | <= 35 mA no-load |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Switching Capacity In Ma | 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -25-55°C |
| Output Type | Relay |
| Electrical Durability | 500000 cycles 1 60 cyc/mn 250 V || 500000 cycles 0.4 60 cyc/mn 250 V |
| Switching Frequency | <= 20 Hz |
| Cable Entry | 1 entry for M16 x 1.5 cable gland 7-10 mm |
| Status Led | 1 LED yellow)output state || 1 LED green)supply |
| Maximum Sensing Distance | 20 m reflex |
| Discrete Output Function | 1 C/O |
| Supply Voltage Limits | 20-264 V AC |
| Maximum Delay Response | 25 msec |
| Series Name | general purpose single mode |
| [Us] Rated Supply Voltage | 24...240 V AC, DC |
| Supply Circuit Type | DC, AC |
| Type Of Output Signal | discrete |
| Product Certifications | UL, CSA || CE |
| Sensor Design | compact 92 x 71 |
| Electronic Sensor Type | photo-electric sensor |
| Maximum Voltage Drop | <1.5 V closed state |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 |
| Setting-Up | without sensitivity adjustment |
| Maximum Delay Recovery | 25 msec |
| Maximum Delay First Up | 60 msec |
| Wiring Technique | 5-wire |
| Maximum Power Consumption In W | 2 W AC/DC |
| Emission | infrared reflex |
| [Sn] Nominal Sensing Distance | 14-14 m reflex need reflector XUZC50 |
| Ambient Air Temperature For Storage | -40-70°C |
| Sensor Name | XUX |
| Enclosure Material | PBT |
| Lens Material | PMMA |
| Detection System | reflex |
| Package Quantity | 1 |
