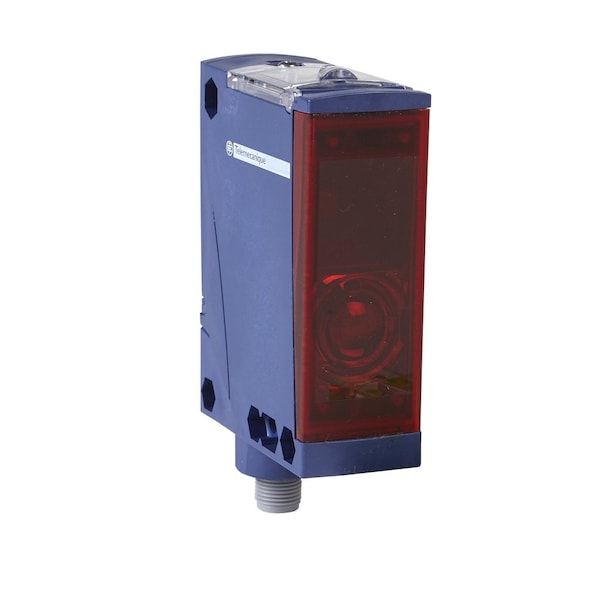

Sensor fotoeléctrico compacto Xux
| Item | Photoelectric Sensor Compact Xux |
|---|---|
| Material | Plastic |
| Electrical Connection | 1 male connector M12, 4 pins |
| Current Consumption | 35 mA no-load |
| Supply Voltage Limits | 10-36 V DC |
| Enclosure Material | PC |
| Supply Circuit Type | DC |
| Lens Material | PMMA |
| Sensor Design | compact 92 x 71 |
| Series Name | general purpose single mode |
| Vibration Resistance | 7 gn 10-55 Hz) IEC 60068-2-6 |
| Type Of Output Signal | discrete |
| Switching Frequency | 150 Hz |
| Ambient Air Temperature For Operation | -25-55°C |
| Wiring Technique | 3-wire |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 10 gn 11 ms) IEC 60068-2-27 |
| Status Led | supply on 1 LED green) || instability 1 LED red) || output state 1 LED yellow) |
| Maximum Delay First Up | 200 msec |
| Electronic Sensor Type | photo-electric sensor |
| Ip Degree Of Protection | IP30 IEC 60529 with cover open) || IP65 IEC 60529 double insulation) || IP67 IEC 60529 double insulation) |
| [Sn] Nominal Sensing Distance | 2-2 m |
| Product Certifications | UL, CE || CSA |
| Output Type | solid state |
| Discrete Output Type | PNP, NPN |
| Product Specific Application | long sensing distance with high accuracy |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Maximum Delay Response | 3.5 msec |
| Maximum Voltage Drop | <1.5 V closed state |
| Detection System | diffuse |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Emission | infrared |
| Maximum Delay Recovery | 2.5 msec |
| Sensor Name | XUX |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Package Quantity | 1 |
