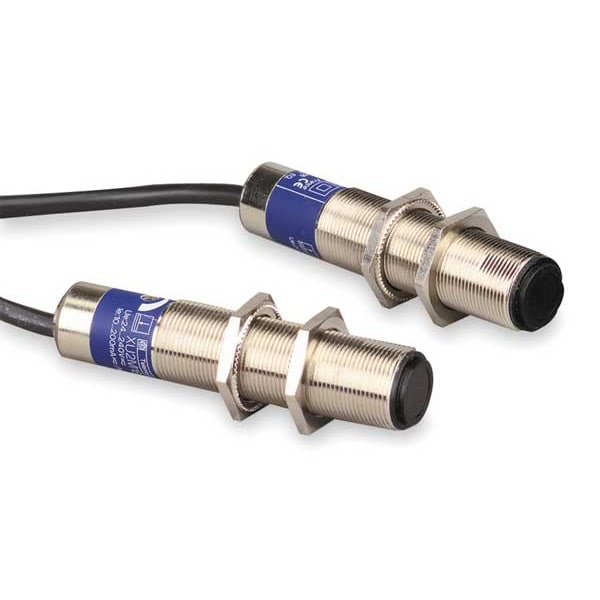

Sensor fotoeléctrico, cilíndrico, reflectivo
| Item | Cylindrical Photoelectric Sensor |
|---|---|
| Circuit Type | Solid State Relay SPST |
| IP Rating | 67 |
| Width | 0.7 in |
| Depth | 2.2 in |
| Operating Mode - Photoelectric Sensor | Light On |
| Material | Metal |
| Max. Load Current | 200 mA |
| Operating Frequency | 25 Hz |
| Electrical Connection | 2m cable |
| Operating Temp. Range | -25 to 55 deg C |
| Standards | CE Approval, CSA Certified, RoHS Approval, UL Listed |
| Power Requirement | 24 to 240VAC/DC |
| Length | 0.7 in |
| Sensing Method | Retroreflective |
| Features | PMMA Lens |
| Body Material | Nickel Plated Brass |
| Max. Sensing Distance | 3 m |
| Electrical Connection - Cylindrical Photoelectric Sensor | Cable |
| Response Time | 20 msec |
| Shape | Cylindrical |
| NEMA Rating | Not Rated |
| Sensing Method - Cylindrical Photoelectric Sensor | Retroreflective |
| Length - Cylindrical Photoelectric Sensor | 18 mm |
| Power Requirement - Cylindrical Photoelectric Sensor | 24 to 240V AC/DC |
| Diameter | 18 mm |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | 3 m |
| Circuit Type - Cylindrical Photoelectric Sensor | Solid State Relay, SPST |
| Operation Mode | Light On |
| Light Source | Red and Yellow LED |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Cable Length | 2 m |
| [Sn] Nominal Sensing Distance | 2-2 m polarised reflex need reflector XUZC50 |
| Sensor Design | cylindrical M18 |
| Switching Capacity In Ma | 10...200 mA to be used with 0.4 A quick-blow fuse in series with the load) |
| Output Type | solid state |
| Supply Circuit Type | DC, AC |
| Product Certifications | UL || CSA || CE |
| Add On Output | without |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Maximum Sensing Distance | 3 m |
| Type Of Output Signal | discrete |
| Wire Insulation Material | PvR |
| Electronic Sensor Type | photo-electric sensor |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Discrete Output Function | 1 NC |
| Enclosure Material | Nickel Plated Brass |
| Wiring Technique | 2-wire |
| Maximum Delay Response | 20 msec |
| Line Of Sight Type | axial |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Maximum Delay First Up | 300 msec |
| Setting-Up | sensitivity adjustment |
| Ambient Air Temperature For Operation | -25-55°C |
| Supply Voltage Limits | 20-264 V AC, DC |
| Kit Composition | reflector XUZC50 || sensor |
| [Us] Rated Supply Voltage | 24...240 V AC, DC |
| Ambient Air Temperature For Storage | -40-70°C |
| Status Led | 1 LED yellow)output state || 1 LED red)instability |
| Detection System | reflex |
| Maximum Voltage Drop | < closed state |
| Maximum Delay Recovery | 20 msec |
| Emission | red polarised reflex |
| Lens Material | PMMA |
| Maximum Residual Current | 1.5 mA open state |
| Sensor Name | XU9 |
| Switching Frequency | <= 25 Hz |
| Series Name | general purpose single mode |
| Package Quantity | 1 |
