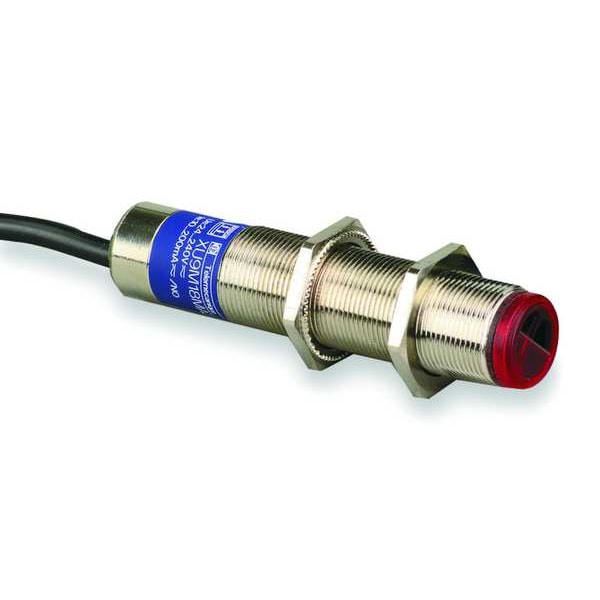

Sensor fotoeléctrico, cilindro, reflectivo.
| Item | Cylindrical Photoelectric Sensor |
|---|---|
| IP Rating | 65, 67 |
| Width | 3 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Material | Plastic |
| Max. Load Current | 100 mA |
| Operating Frequency | 500 Hz |
| Electrical Connection | 2m cable |
| Response Time | 1 msec |
| Length | 1.8 in |
| Footnotes | IP65 IP67 Rated |
| Power Requirement | 12 to 24VDC |
| Operating Temp. Range | -25 to 55 deg C |
| Circuit Type - Cylindrical Photoelectric Sensor | NPN |
| Sensing Method - Cylindrical Photoelectric Sensor | Retroreflective |
| Sensing Method | Retroreflective |
| Operation Mode | Dark On, Selectable Light On |
| Diameter | 18 mm |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Power Requirement - Cylindrical Photoelectric Sensor | 12 to 24 V DC |
| Standards | CE Approval, CSA Certified, UL Listed |
| NEMA Rating | Not Rated |
| Length - Cylindrical Photoelectric Sensor | 46 mm |
| Features | Surge Suppressor, Output Short-Cut and Output Reverse Polarity Protection |
| Response Time (ms) | 1 |
| Body Material | PBT |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | 6 m |
| Electrical Connection - Cylindrical Photoelectric Sensor | Cable |
| Light Source | Infrared LED |
| Shape | Cylindrical |
| Current Consumption | 35 mA no-load |
| Cable Length | 2 m |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Enclosure Material | PBT |
| Discrete Output Type | NPN |
| Switching Frequency | <= 500 Hz |
| Supply Circuit Type | DC |
| Emission | infrared reflex |
| Series Name | general purpose single mode |
| Setting-Up | without sensitivity adjustment |
| Status Led | 1 LED yellow)output state |
| Sensor Design | cylindrical M18 |
| Ambient Air Temperature For Operation | -25-55°C |
| Type Of Output Signal | discrete |
| Line Of Sight Type | axial |
| Add On Output | without |
| [Sn] Nominal Sensing Distance | 4-4 m reflex need reflector XUZC50 |
| Product Certifications | CE || UL || CSA |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Wire Insulation Material | PvR |
| Maximum Voltage Drop | <1.5 V closed state |
| Supply Voltage Limits | 10-36 V DC |
| Maximum Delay Response | 1 msec |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Maximum Delay First Up | 15 msec |
| Maximum Sensing Distance | 5.5 m reflex |
| Lens Material | PMMA |
| Discrete Output Function | 1 NO |
| Electronic Sensor Type | photo-electric sensor |
| Wiring Technique | 3-wire |
| Output Type | solid state |
| Maximum Delay Recovery | 1 msec |
| Sensor Name | XUB |
| Detection System | reflex |
| Package Quantity | 1 |
