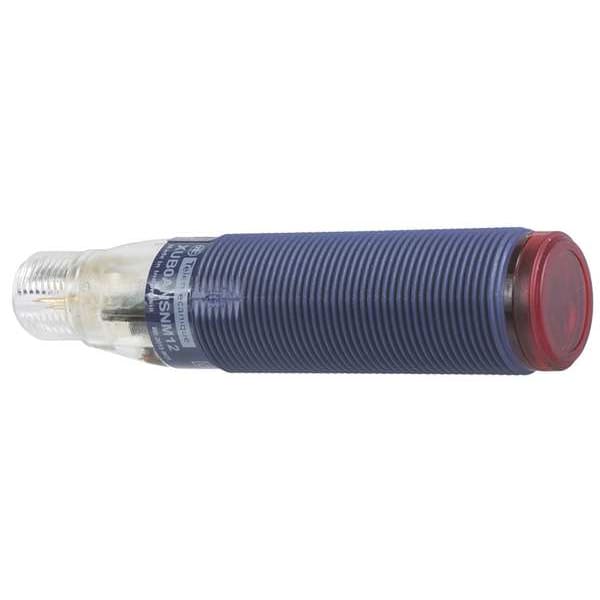

Sensor fotoeléctrico, cilindro, reflectante.
| Item | Cylindrical Photoelectric Sensor |
|---|---|
| Circuit Type | NPN |
| IP Rating | 67 |
| Width | 1.1 in |
| Operating Mode - Photoelectric Sensor | Dark On |
| Depth | 0.71 in |
| Material | Plastic |
| Max. Load Current | 100 mA |
| Operating Frequency | 500 Hz |
| Electrical Connection | M12 Connector |
| Operation Mode | Dark On |
| Operating Temp. Range | -25 to 55 deg C |
| Response Time (ms) | Less than 1 |
| Length - Cylindrical Photoelectric Sensor | 62 mm |
| Standards | CCC, CE Approval, CSA Certified, RoHs Approval, UL Listed |
| NEMA Rating | Not Rated |
| Sensing Method - Cylindrical Photoelectric Sensor | Retroreflective |
| Max. Sensing Distance | 3 m |
| Sensing Method | Retroreflective |
| Power Requirement - Cylindrical Photoelectric Sensor | 12 to 24 V DC |
| Circuit Type - Cylindrical Photoelectric Sensor | NPN |
| Length | 2.44 in |
| Features | Overload, PMMA Lens, Short Circuit and Reverse Polarity Protection |
| Diameter | 18 mm |
| Shape | Cylindrical |
| Response Time | 1 msec |
| Body Material | PBT |
| Light Source | Red LED |
| Electrical Connection - Cylindrical Photoelectric Sensor | Male Connector |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Power Requirement | 12 to 24VDC |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | 3 m |
| Current Consumption | 35 mA no-load |
| Wiring Technique | 3-wire |
| Sensor Design | cylindrical M18 |
| Sensor Name | XUB |
| Discrete Output Function | 1 NO |
| Discrete Output Type | NPN |
| Ambient Air Temperature For Operation | -25-55°C |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Lens Material | PMMA |
| Maximum Voltage Drop | <1.5 V closed state |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Supply Circuit Type | DC |
| Output Type | solid state |
| Electronic Sensor Type | photo-electric sensor |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Line Of Sight Type | axial |
| Series Name | general purpose single mode |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 || IP69K double insulation DIN 40050 |
| Ambient Air Temperature For Storage | -40-70°C |
| Add On Output | without |
| Type Of Output Signal | discrete |
| [Sn] Nominal Sensing Distance | 2-2 m polarised reflex need reflector XUZC50 |
| Detection System | reflex |
| Switching Frequency | <= 500 Hz |
| Emission | red polarised reflex |
| Enclosure Material | PBT |
| Status Led | 1 LED yellow)output state |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Product Certifications | CE || UL || CSA |
| Maximum Delay Response | 1 msec |
| Supply Voltage Limits | 10-36 V DC |
| Wire Insulation Material | PvR |
| Setting-Up | without sensitivity adjustment |
| Maximum Sensing Distance | 3 m (polarised reflex) |
| Maximum Delay First Up | 15 msec |
| Maximum Delay Recovery | 1 msec |
| Package Quantity | 1 |
