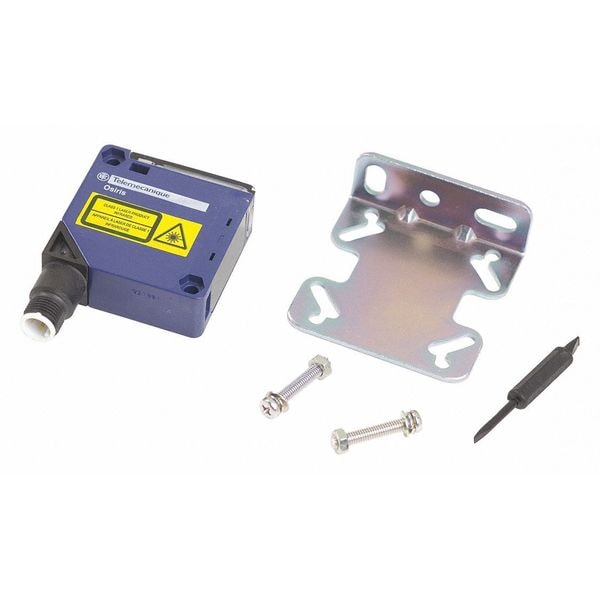

Sensor fotoeléctrico + opciones
| Item | Photoelectric Sensor +Options |
|---|---|
| Height | 50 mm |
| Width | 18 mm |
| Depth | 50 mm |
| Material | Plastic |
| Electrical Connection | 1 male connector M12, 4 pins |
| Current Consumption | <= 30 mA no-load |
| Product Certifications | CE || Ecolab |
| Enclosure Material | PC |
| [Sn] Nominal Sensing Distance | 1-1 m diffuse with background suppression |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Electronic Sensor Type | photo-electric sensor |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Maximum Delay Recovery | 2 msec |
| Sensor Name | XUK |
| Lens Material | PMMA |
| Maximum Delay First Up | 300 msec |
| Maximum Delay Response | 2 msec |
| Supply Voltage Limits | 10-36 V DC |
| Sensor Design | compact 50 x 50 |
| Wire Insulation Material | PVC |
| Maximum Sensing Distance | 1 m diffuse with background suppression |
| Detection System | diffuse |
| Minimum Object Diameter For Detection | 2 mm |
| Ambient Air Temperature For Storage | -30-70°C |
| Discrete Output Type | PNP, NPN |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP65 double insulation IEC 60529 |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Supply Circuit Type | DC |
| Type Of Output Signal | discrete |
| Status Led | 1 LED yellow)output state || 1 LED green)supply |
| Switching Frequency | <= 250 Hz |
| Setting-Up | sensitivity adjustment |
| Wiring Technique | 3-wire |
| Ambient Air Temperature For Operation | -20-60°C |
| Output Type | solid state |
| Series Name | general purpose single mode |
| Kit Composition | with XUZA51 bracket fixing |
| Maximum Voltage Drop | <1.5 V closed state |
| Emission | infrared laser, modulated diffuse with background suppression class 1 |
| Package Quantity | 1 |
