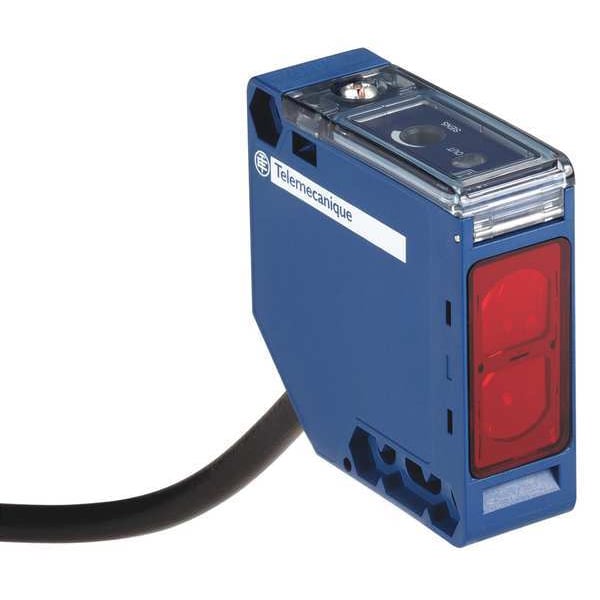

Sensor fotoeléctrico rectangular reflectante.
| Item | Photoelectric Sensor |
|---|---|
| IP Rating | 65 |
| Circuit Type | Relay NO/NC |
| Sensing Method - Rectangular Photoelectric Sensor | Polarized Retroreflective |
| Power Requirement - Rectangular Photoelectric Sensor | 24 to 240V AC/DC |
| Height | 50 mm |
| Output Circuit Type - Rectangular Photoelectric Sensor | NC, NO, Relay |
| Width | 0.7 in |
| Depth | 1.77 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Material | Plastic |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 8 m |
| Max. Load Current | 3 A |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Operating Frequency | 20 Hz |
| Height - Rectangular Photoelectric Sensor | 70 mm |
| Electrical Connection | 2m cable |
| Max. Sensing Distance | 8 m |
| Operating Temp. Range | -25 to 55 deg C |
| Length | 2-3/4 in |
| Power Requirement | 24 to 240VAC/DC |
| Sensing Method | Retroreflective |
| Shape | Rectangular |
| NEMA Rating | 12, 16, 4, 4X |
| Features | PMMA Lens |
| Response Time | 25 msec |
| Light Source | Infrared LED |
| Operation Mode | Dark On, Selectable Light On |
| Standards | CE Approval, CSA Certified, UL Listed |
| Depth - Rectangular Photoelectric Sensor | 45 mm |
| Body Material | PBT |
| Width - Rectangular Photoelectric Sensor | 18 mm |
| Electrical Connection (Rectangular Photoelectric Sensor) | 2m Cable |
| Sensing Method (Rectangular Photoelectric Sensor) | Polarized Retroreflective |
| Height (Rectangular Photoelectric Sensor) | 70 mm |
| Power Requirement (Rectangular Photoelectric Sensor) | 24 to 240VAC/DC |
| Width (Rectangular Photoelectric Sensor) | 18 mm |
| Output Circuit Type (Rectangular Photoelectric Sensor) | Relay, NO/NC |
| Depth (Rectangular Photoelectric Sensor) | 45 mm |
| Max. Sensing Distance (Rectangular Photoelectric Sensor) | 8 m |
| Operating Mode (Photoelectric Sensor) | Selectable Light On/Dark On |
| Current Consumption | <= 35 mA no-load |
| Cable Length | 2 m |
| Output Type | Relay |
| Electrical Durability | 500000 cycles 1 60 cyc/mn 250 V |
| Sensor Design | compact 50 x 50 |
| [Us] Rated Supply Voltage | 24...240 V AC, DC |
| Discrete Output Function | 1 C/O |
| Enclosure Material | PBT |
| Detection System | reflex |
| Ambient Air Temperature For Storage | -40-70°C |
| Wiring Technique | 5-wire |
| Maximum Power Consumption In W | 2 W |
| Supply Voltage Limits | 20-264 V AC || 20-264 V DC |
| Maximum Delay Response | 25 msec |
| Electronic Sensor Type | photo-electric sensor |
| Maximum Voltage Drop | <1.5 V closed state |
| [Sn] Nominal Sensing Distance | 6-6 m polarised reflex need reflector XUZC50 |
| Ip Degree Of Protection | IP65 double insulation IEC 60529 |
| Sensor Name | XUK |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Status Led | 1 LED yellow)output state || 1 LED green)supply |
| Ambient Air Temperature For Operation | -25-55°C |
| Maximum Sensing Distance | 8 m (polarised reflex) |
| Type Of Output Signal | discrete |
| Lens Material | PMMA |
| Supply Circuit Type | DC, AC |
| Series Name | general purpose single mode |
| Emission | red polarised reflex |
| Maximum Delay First Up | 60 msec |
| Switching Frequency | <= 20 Hz |
| Maximum Delay Recovery | 25 msec |
| Setting-Up | without sensitivity adjustment |
| Switching Capacity In Ma | 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Product Certifications | CE, Ecolab |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Wire Insulation Material | PVC |
| Package Quantity | 1 |
