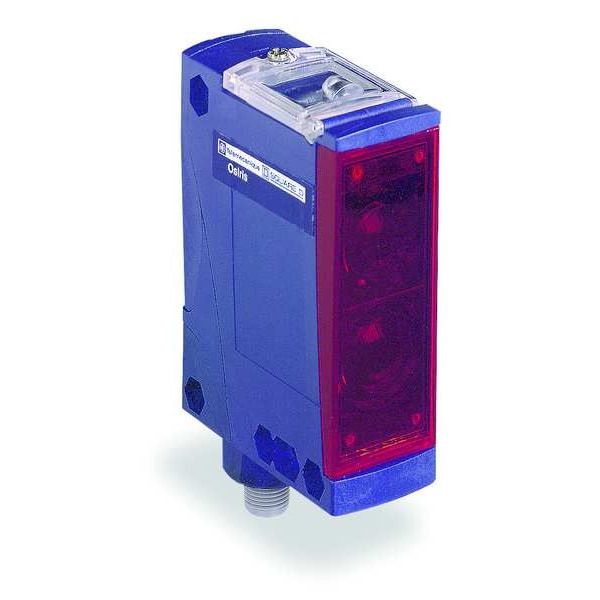

Sensor fotoeléctrico, rectángulo, de haz a través.
| Item | Photoelectric Sensor |
|---|---|
| Sensing Method - Rectangular Photoelectric Sensor | Through Beam Transmitter |
| IP Rating | 67 |
| Circuit Type | Transmitter |
| Power Requirement - Rectangular Photoelectric Sensor | 12 to 24 V DC |
| Height | 92 mm |
| Output Circuit Type - Rectangular Photoelectric Sensor | Transmitter |
| Width | 1.2 in |
| Operating Mode - Photoelectric Sensor | Light On |
| Depth | 3.43 in |
| Material | Plastic |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 60 m |
| Operating Frequency | 250 Hz |
| Electrical Connection - Rectangular Photoelectric Sensor | 4-Pin M12 Male Connector |
| Electrical Connection | M12 Connector |
| Height - Rectangular Photoelectric Sensor | 114 mm |
| Length | 4.49 in |
| Width - Rectangular Photoelectric Sensor | 30 mm |
| Power Requirement | 12 to 24VDC |
| Operating Temp. Range | -25 to 55 deg C |
| Shape | Rectangular |
| Max. Sensing Distance | 60 m |
| Features | Programmable as a Thru-Beam, Diffuse With Background Suppression, Retro-Reflective and Polarized Retro-Reflective, Short Circuit Protection, Over Load Protection and Reverse Polarity Protection |
| Operation Mode | Light On |
| Response Time | 25 msec |
| Standards | CE Approval, RoHs Approval, UL Listed |
| NEMA Rating | IP67 |
| Sensing Method | Through Beam Transmitter |
| Light Source | Infrared LED |
| Depth - Rectangular Photoelectric Sensor | 87 mm |
| Body Material | PBT |
| Current Consumption | 20 mA no-load |
| Maximum Sensing Distance | 60 m (thru beam) |
| Status Led | 1 LED green)supply on |
| Maximum Delay Recovery | 2 msec |
| Ip Degree Of Protection | IP65 double insulation IEC 60529 || IP67 double insulation IEC 60529 |
| Add On Input | test by emission breaking |
| Electronic Sensor Type | photo-electric sensor transmitter |
| Supply Voltage Limits | 10-36 V DC |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Enclosure Material | PBT |
| Sensor Design | compact 92 x 71 |
| Maximum Delay First Up | 200 msec |
| Maximum Voltage Drop | <1.5 V closed state |
| Lens Material | PMMA |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Sensor Name | XUX |
| Maximum Delay Response | 2 msec |
| Ambient Air Temperature For Storage | -40-70°C |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| [Sn] Nominal Sensing Distance | 40-40 m thru beam need a receiver |
| Wiring Technique | 3-wire |
| Setting-Up | without sensitivity adjustment |
| Detection System | thru beam |
| Ambient Air Temperature For Operation | -25-55°C |
| Supply Circuit Type | DC |
| Emission | infrared thru beam |
| Product Certifications | UL, CE || CSA |
| Switching Frequency | <= 250 Hz |
| Series Name | general purpose multimode |
| Package Quantity | 1 |
