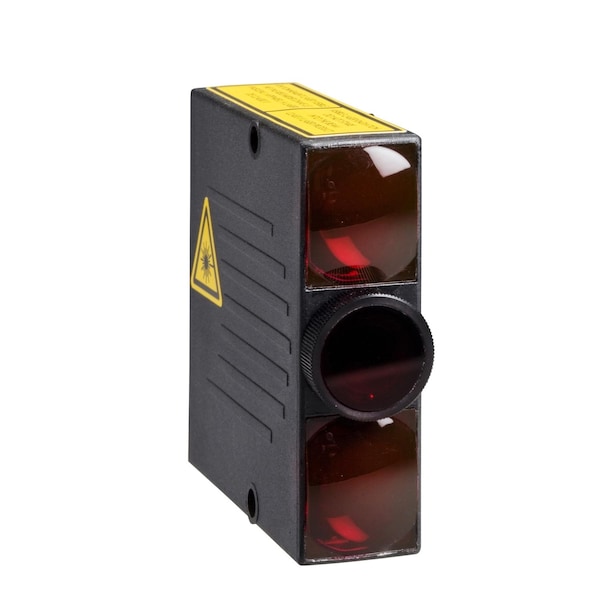

Sensor fotoeléctrico-XUY-BGS-láser
| Item | Photoelectric sensor - XUY - BGS - laser |
|---|---|
| Material | Plastic |
| Electrical Connection | 1 male connector M8, 4 pins |
| Current Consumption | 35 mA |
| Lens Material | PMMA |
| Ambient Air Temperature For Operation | 0-50°C |
| Enclosure Material | glass impregnated nylon |
| Minimum Object Diameter For Detection | 0.5 mm |
| Sensor Design | compact |
| [Sn] Nominal Sensing Distance | 50-300 mm |
| Ambient Air Temperature For Storage | -20-60°C |
| Electronic Sensor Type | photo-electric sensor |
| Switching Frequency | > 5 kHz |
| Product Specific Application | control of level || monitoring of small parts on production machine || monitoring for crack on a component || suppression of a background || detection of components on a printed circuit |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Status Led | output state 1 LED green) || NC function 1 LED none) || NO function 1 LED red) || time delay active 1 LED red) |
| Supply Voltage Limits | 10-30 V DC |
| Maximum Voltage Drop | < closed state |
| Discrete Output Type | PNP, NPN |
| Sensor Name | XUY |
| Supply Circuit Type | DC |
| Output Type | solid state |
| Setting-Up | manual adjustment of focusing |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Emission | red laser, pulsed 675 nm - class 2 |
| Series Name | Application material handling |
| Product Certifications | cULus || CE |
| Wiring Technique | 4-wire |
| Maximum Delay Response | 40 ms output circuit depending on wiring |
| Maximum Delay Recovery | 150 usec |
| Spot Diameter | 0 in |
| Detection System | diffuse |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| Immunity To Ambient Light | 10000 lux natural light || 500 lux incandescent bulb |
| Type Of Output Signal | discrete |
| Package Quantity | 1 |
