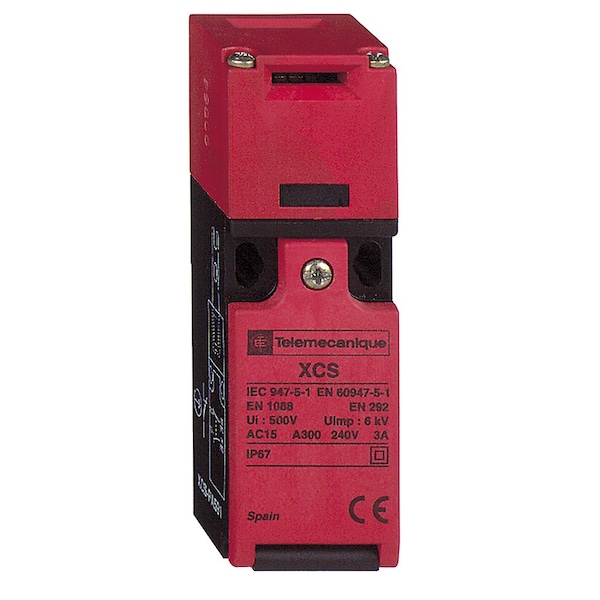

Interruptor de seguridad plástico XCSPA-1 NC 2 N.
| Item | Plastic safety switch XCSPA - 1 NC + 2 N |
|---|---|
| Depth | 30 mm |
| Height | 94-94 mm |
| Width | 30 mm |
| Material | Plastic |
| Standards | UL 508 || EN/IEC 60204-1 || EN 1088/ISO 14119 || EN/ISO 12100 || CSA C22.2 No 14 || EN/IEC 60947-5-1 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Ip Degree Of Protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Short-Circuit Protection | 6 A cartridge fuse gG (gl) |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-5-4 |
| Mechanical Durability | 1,000,000 cycle |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Head Type | key operated turret head |
| Protective Treatment | TC |
| Maximum Actuation Speed | 0.5 m/s |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1 |
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Electrical Connection | terminal 1 x 0.34 to 2 x 0.75 mm² |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| Positive Opening Minimum Force | 15 N |
| Number Of Poles | 3 |
| Minimum Actuation Speed | 0.01 m/s |
| Positive Opening | with NC contact |
| Component Name | XCSPA |
| Contact Operation | slow-break, break before make |
| Actuator Forcible Withdrawal Rtc | 10 N |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Certifications | CSA || UL |
| Design | compact |
| Cable Entry | 1 entry tapped Pg 11 |
| Ambient Air Temperature For Storage | -40-70°C |
| Cable Outer Diameter | 7-10 mm |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Insulation | double insulated |
| Contacts Type And Composition | 1 NC + 2 NO |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
| Body Material | PA (polyamide) |
| Head Material | PA (polyamide) |
| Product Or Component Type | safety switch |
| Package Quantity | 1 |
