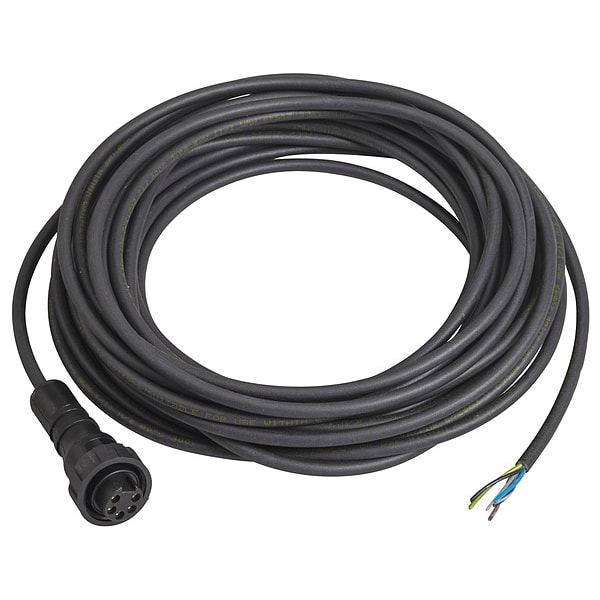

Conector pre-cableado, tamaño de 0.2300", IP67.
| Item | Pre-Wired Connector |
|---|---|
| IP Rating | 67 |
| Color | Black |
| Electrical Connection | straight female connector 7/8"16 UN, 5 pins (included earth pin) |
| Plug or Connector Type | Female |
| Face Dia. | 1.0200" |
| Keyway | Single |
| NEMA Rating | 12, 13, 3, 4, 4X, 6, 6P |
| Max. Current | 4A |
| Cable Length | 2 m |
| Number of Pins | 5 |
| Wire Size | 0.2300 in |
| Plug End | Straight |
| Wire Length | 6.56 ft. |
| Standards | CULus |
| Body Material | Metal, Thermoplastic Polyurethane Elastomer |
| Cable Outer Diameter | 5.9 mm |
| Contact Resistance | 5000µOhm |
| Ambient Air Temperature For Operation | -35-90°C static || -5-90°C flexing |
| Line Rated Current | 4A |
| Product Certifications | cULus |
| Accessory / Separate Part Category | cabling accessory |
| Minimum Insulating Resistance | 1 GΩ |
| Series Name | general purpose |
| Cable Composition | 5 mm² x 0.34 mm² |
| [Ue] Rated Operational Voltage | 250 V AC |
| Collar Material | metal |
| Ip Degree Of Protection | IP67 |
| Accessory / Separate Part Type | pre-wired connectors |
| Status Led | without |
| Cable Connector Fixing | screw-on |
| Wire Insulation Material | PUR |
| Ambient Air Temperature For Storage | -35-100°C |
| Package Quantity | 1 |
