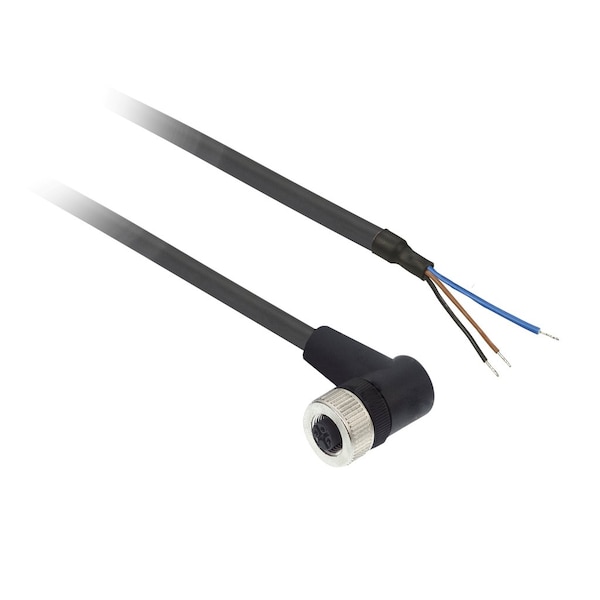

Conectores pre-cableados con hembra en ángulo XZ.
| Item | Pre-wired connectors XZ - elbowed female |
|---|---|
| Cable Length | 5 m |
| Cable Composition | 3 x 0.34 mm² |
| Accessory / Separate Part Type | pre-wired connectors |
| Cable Outer Diameter | 5.2 mm |
| Contact Resistance | 5000µOhm |
| Ambient Air Temperature For Storage | -40-80°C |
| Electrical Connection | elbowed female connector M12, 3 pins |
| Minimum Insulating Resistance | 1 GΩ |
| Series Name | general purpose |
| Cable Connector Fixing | screw-on |
| Accessory / Separate Part Category | cabling accessory |
| Line Rated Current | 4 A |
| Status Led | 2 PNP LEDs |
| Ip Degree Of Protection | IP65 || IP67 || IP69K |
| Collar Material | metal |
| Product Certifications | cULus |
| [Ue] Rated Operational Voltage | 10 to 30 V DC |
| Ambient Air Temperature For Operation | -40-80°C static || -5-80°C flexing |
| Wire Insulation Material | PUR |
| Package Quantity | 1 |
