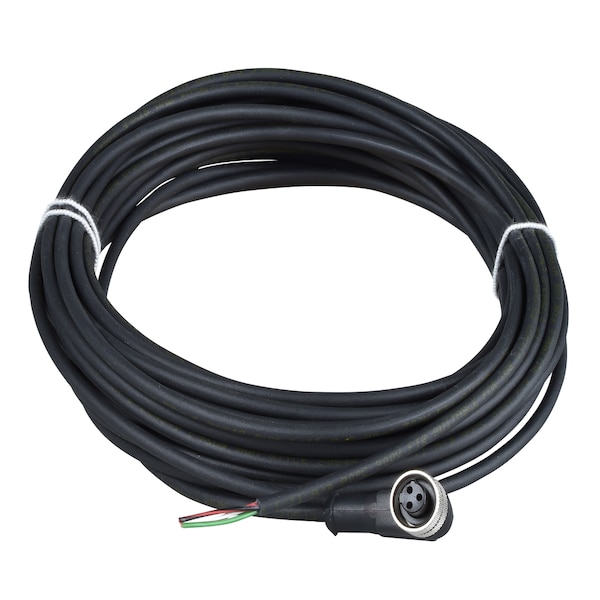

Conectores pre-cableados XZ-hembra en codo
| Item | Pre-wired connectors XZ - elbowed female |
|---|---|
| [Ue] Rated Operational Voltage | 250 V AC || 300 V DC |
| Cable Outer Diameter | 5.2 mm |
| Series Name | general purpose |
| Cable Length | 5 m |
| Cable Connector Fixing | screw-on |
| Accessory / Separate Part Category | cabling accessory |
| Wire Insulation Material | PUR |
| Product Certifications | cULus |
| Minimum Insulating Resistance | 1 GΩ |
| Cable Composition | 3 x 0.34 mm² |
| Ambient Air Temperature For Storage | -35-100°C |
| Line Rated Current | 4 A |
| Contact Resistance | 5000µOhm |
| Ambient Air Temperature For Operation | -35-90°C static || -5-90°C flexing |
| Status Led | without |
| Electrical Connection | elbowed female connector 1/2"20 UNF, 3 pins |
| Accessory / Separate Part Type | pre-wired connectors |
| Collar Material | metal |
| Ip Degree Of Protection | IP67 |
| Package Quantity | 1 |
