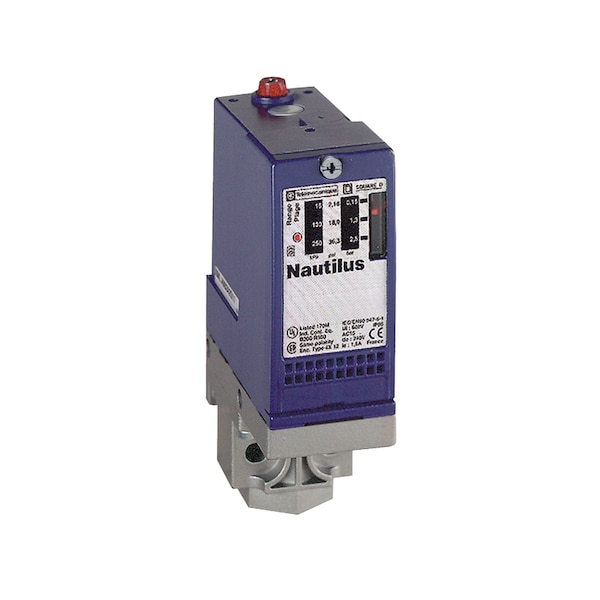

Interruptor de presión, 1 contacto normalmente abierto, detección de 1 umbral de acción único.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Electrical Contact Form | 1 C/O |
| Pressure Switch Action | Detection of 1 single threshold |
| IP Rating | IP66 |
| Electrical Connection | Screw-Clamp Terminals |
| Actuation Type | Diaphragm |
| Special Features | Local Display; Mercury Free; Green Premium product |
| Burst Pressure | 18 bar |
| Housing Material | Zinc alloy |
| Circuit Type | Control Circuit |
| Standards | CSA C22.2 No 14; EN/IEC 60947-5-1; UL 508; CE; EAC; BV; CCC; LROS (Lloyds register of shipping) |
| Max. Pressure | 5 bar |
| Differential | Fixed Differential Scale |
| Temp. Range | -25 to 70 °C |
| Package Quantity | 1 |
