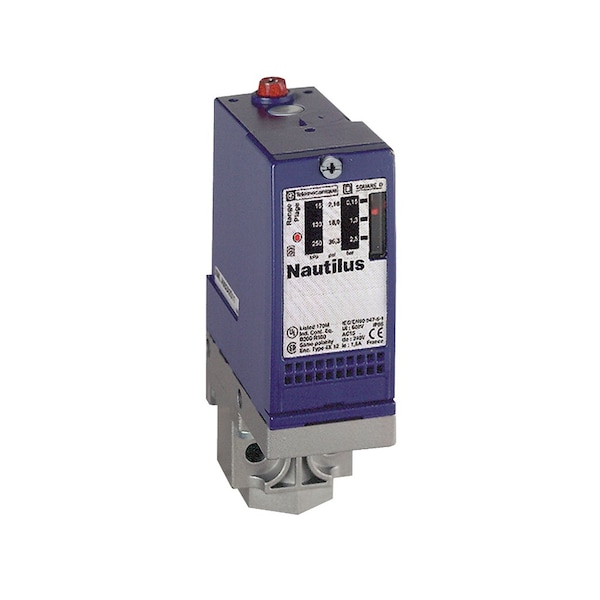

Interruptor de presión, 1 C/O, Detección de 1 umbral de acción único
| Item | Pressure Switch |
|---|---|
| Pressure Switch Electrical Contact Form | 1 C/O |
| Pressure Switch Action | Detection of 1 single threshold |
| Temp. Range | -25 to 70 °C |
| Housing Material | Zinc alloy |
| Max. Pressure | 375 bar |
| Actuation Type | Piston |
| Special Features | Local Display; Mercury Free; Green Premium product |
| IP Rating | IP66 |
| Differential | Fixed Differential Scale |
| Burst Pressure | 1,350 bar |
| Electrical Connection | Screw-Clamp Terminals |
| Standards | UL 508; EN/IEC 60947-5-1; CSA C22.2 No 14; CE; LROS (Lloyds register of shipping); EAC; BV; CCC |
| Circuit Type | Control Circuit |
| Package Quantity | 1 |
