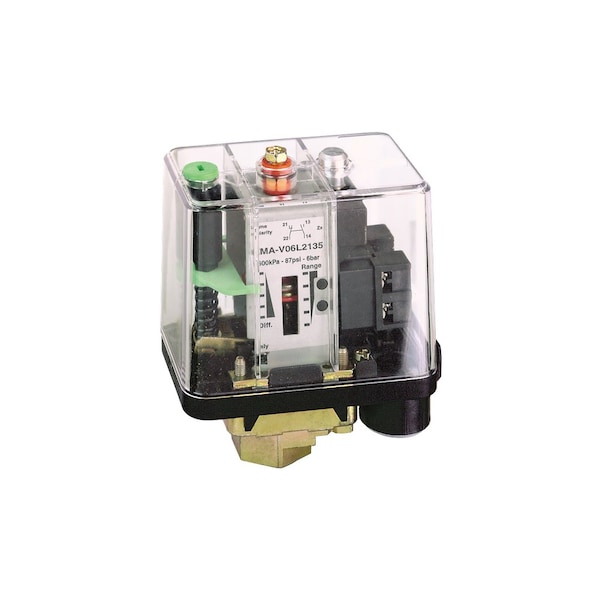

Interruptor de presión, 1 NA/NC, regulación entre 2 niveles de activación.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Electrical Contact Form | 1 C/O |
| Pressure Switch Action | Regulation between 2 thresholds |
| Circuit Type | Control Circuit |
| Housing Material | PC impregnated with Lexan 123 |
| Actuation Type | Diaphragm |
| Special Features | transparent; Mercury Free; Green Premium product |
| Standards | CE; EN/IEC 60947-5-1; CCC; UL; CSA |
| Temp. Range | -25 to 55 °C |
| Electrical Connection | Screw-Clamp Terminals |
| IP Rating | IP54 |
| Burst Pressure | 30 bar |
| Max. Pressure | 15 bar |
| Differential | Fixed Differential Scale |
| Package Quantity | 1 |
