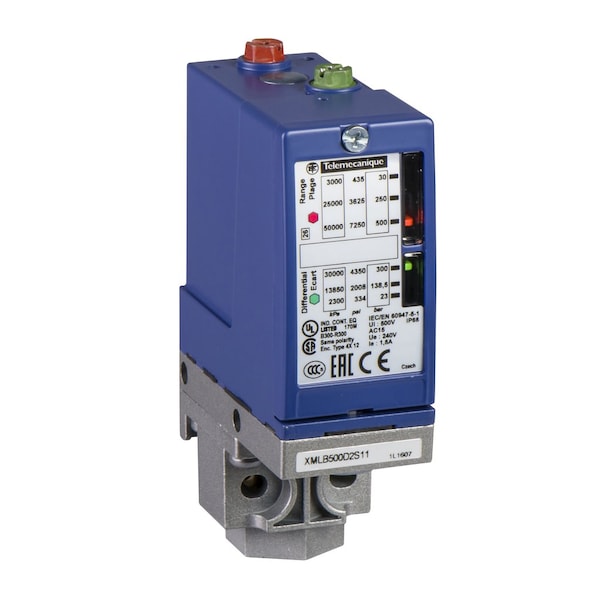

Interruptor de presión, 1 contacto normalmente abierto, regulación entre 2 umbrales de acción.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Electrical Contact Form | 1 C/O |
| Pressure Switch Action | Regulation between 2 thresholds |
| Burst Pressure | 2,250 bar |
| Electrical Connection | Screw-Clamp Terminals |
| Housing Material | Zinc alloy |
| Circuit Type | Control Circuit |
| Standards | CSA C22.2 No 14; EN/IEC 60947-5-1; CE; UL 508; CCC; BV; EAC; LROS (Lloyds register of shipping) |
| Differential | Adjustable Differential Scale |
| Special Features | Local Display; Mercury Free; Green Premium product |
| Max. Pressure | 625 bar |
| IP Rating | IP66 |
| Temp. Range | -25 to 70 °C |
| Actuation Type | Piston |
| Package Quantity | 1 |
